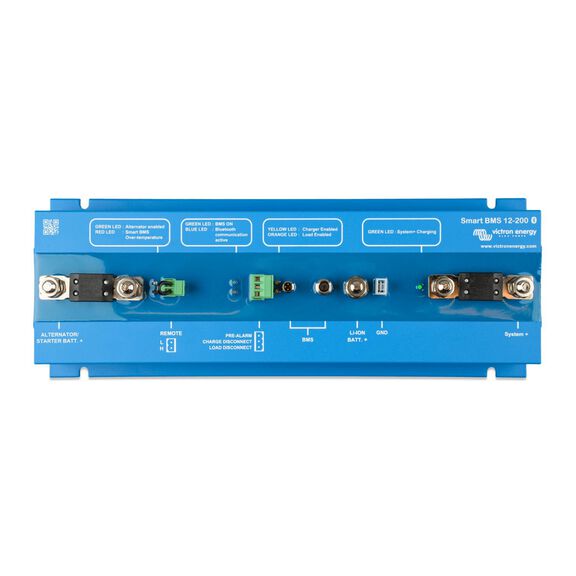

Victron Energy Smart BMS 12/200
The Smart BMS 12/200 is an all-in-one Battery Management system for Victron Lithium-Iron-Phosphate (LiFePO4) Smart Batteries. It has been specifically designed for 12V systems with a 12V alternator such as in vehicles and boats. It combines a Current Limiter, Battery Combiner and Battery Protector in a robust and compact solution and lets you safely connect any size 12V alternator (and starter battery), loads and chargers to Smart Lithium batteries. The Smart BMS 12/200 monitors and protects each individual battery cell within the battery (or battery bank) and will disconnect the alternator, charge sources or DC loads in case of low battery cell voltage, high battery cell voltage or over temperature. The dedicated alternator connection provides current limiting and one-way traffic from the alternator into the battery, this so any size alternator (and starter battery) can be safely connected to the Smart Lithium battery (or battery bank) and the starter battery is protected from excessive discharge. The BMS is equipped with Bluetooth for monitoring and configuration, a remote on/off connector, to turn the BMS (and the system) off via a remote switch and a pre-alarm contact, to give a warning signal before the BMS will disconnect the batteries from the system.
Key Features
- Victron Energy Smart BMS 12-Volt 200 Amp is an all-in-one battery management (BMS) system for Victron Energy LIFEPO4 Batteries 12VDC
- Protects the alternator and wiring, provides alternator current limiting and one-way traffic from the alternator into the battery
- Use bluetooth for monitoring and configuration via VictronConnect app and with Instant Readout
- Victron Energy Smart BMS provides the possibility to read out the most important values in real time without the need to connect to the BMS, which enables diagnostics at a glance
- Despite display options, such as voltage, current, and ampere-hours consumed, the Victron Energy BMV-700 series also displays the state of charge, time to go, and power consumption in Watts
