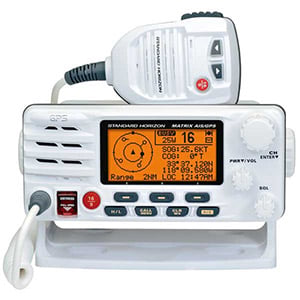

The Standard Horizon GX2200 combines a VHF radio with an integrated GPS receiver, eliminating the need for a separate GPS connection.
Why VHF Radio Safety Features Matter
A marine VHF radio remains one of the most important safety devices onboard any boat. While many boaters use VHF radios for routine communication, modern Digital Selective Calling (DSC) capabilities can dramatically improve emergency response times when every second counts.
In a fire, collision, medical emergency, man overboard incident, grounding or sinking situation, a properly configured DSC-enabled VHF radio can automatically transmit your vessel identification and location to nearby vessels and rescue authorities. Unfortunately, many boaters never complete the setup process needed to activate these life-saving features.
- What Digital Selective Calling (DSC) Does
- How Rescue 21 Works
- Obtaining an MMSI Number
- Connecting Your VHF Radio to GPS
- Using the DSC Distress Button
- Benefits of Proper Setup
- Frequently Asked Questions
What Digital Selective Calling (DSC) Does
Digital Selective Calling is a safety feature built into most modern fixed-mount marine VHF radios. DSC allows a radio to digitally transmit emergency information, vessel identification and location data without relying solely on voice communications.
When DSC is properly configured, pressing the red DISTRESS button automatically sends a digital emergency alert containing:
- Your vessel's MMSI number
- Your GPS position coordinates
- Time of transmission
- Vessel identification information
- Emergency contact information associated with your MMSI registration
This information can be received by the Coast Guard, rescue agencies and nearby DSC-equipped vessels, allowing responders to identify and locate your vessel much faster than with a voice-only Mayday call.
How Rescue 21 Improves Emergency Response
The U.S. Coast Guard's Rescue 21 system was developed to improve maritime search and rescue operations throughout the United States. Rescue 21 uses advanced communication infrastructure to receive DSC distress alerts and VHF transmissions across thousands of miles of coastline, waterways and navigable rivers.
When DSC information is available, Rescue 21 can provide rescue personnel with critical information before voice communication is established. This reduces response times and improves the likelihood of a successful rescue operation.
However, Rescue 21 can only utilize this information if boaters have completed the required setup steps by registering an MMSI number and connecting GPS position data to their VHF radio.
Obtaining an MMSI Number
An MMSI (Maritime Mobile Service Identity) is a unique nine-digit number assigned to your vessel. Think of it as a telephone number for your DSC radio system.
Before DSC features can function properly, you must obtain and program an MMSI into your radio. MMSI registration is available through organizations such as:
- BoatUS
- Sea Tow
- United States Power Squadrons
- Federal Communications Commission (FCC) for vessels requiring station licensing
Once assigned, the MMSI should be entered carefully into the radio according to the manufacturer's instructions. Many radios only allow MMSI programming once without factory service, so accuracy is important.
You should also keep your registration information current, including emergency contacts, vessel description and ownership information.
Connecting Your VHF Radio to GPS
An MMSI alone is not enough. Your radio must also receive accurate position information from a GPS source.
Many modern VHF radios include built-in GPS receivers, making setup straightforward. Other radios require connection to an external chartplotter or GPS receiver using NMEA communication protocols.
Without GPS data, your distress transmission may identify your vessel but will not automatically provide your location.
Before heading offshore, verify that:
- Your GPS position is displaying correctly on the radio
- The radio receives latitude and longitude information
- GPS time updates properly
- DSC functionality is enabled
- Your MMSI number is programmed correctly
Using the DSC Distress Button
Every DSC-equipped marine radio includes a protected red DISTRESS button. In a true emergency, lifting the protective cover and holding the button for several seconds sends an automated distress alert.
A properly configured DSC distress call can transmit information much faster than attempting to relay critical details by voice during a stressful emergency.
After activating a distress alert, continue to monitor Channel 16 and be prepared to provide additional information through voice communications when possible.
Situations that may warrant a DSC distress call include:
- Fire onboard
- Collision
- Flooding or sinking
- Capsizing
- Medical emergency
- Man overboard incidents
- Situations involving immediate danger to life
Benefits of Proper VHF Safety Setup
Taking a few minutes to configure your VHF radio properly can provide significant safety advantages.
- Faster emergency response
- Automatic transmission of vessel identity
- Automatic transmission of GPS coordinates
- Improved search and rescue efficiency
- Reduced reliance on voice communications
- Enhanced situational awareness for nearby vessels
- Additional peace of mind while boating offshore
Many boaters purchase DSC-equipped radios but never complete registration or GPS integration. As a result, emergency alerts often arrive without location information, limiting the effectiveness of modern rescue systems.
Choosing a DSC-Capable VHF Radio
When selecting a marine VHF radio, look for features that simplify safety integration and emergency communication.
- Built-in GPS receiver
- Class D DSC functionality
- NMEA 0183 or NMEA 2000 connectivity
- Dedicated distress button
- AIS receiver integration
- Waterproof construction
- Large display for GPS position information
- Remote microphone compatibility
Frequently Asked Questions About DSC and MMSI
What is an MMSI number?
An MMSI (Maritime Mobile Service Identity) is a unique nine-digit vessel identification number used by DSC-equipped marine radios for digital communication and emergency alerts.
Do I need GPS connected to my VHF radio?
Yes. Without GPS position data, a DSC distress alert may identify your vessel but cannot automatically transmit your location to rescuers.
What happens when I press the DSC distress button?
The radio automatically transmits a digital distress message containing your MMSI information and GPS position, if available, to the Coast Guard and nearby DSC-equipped vessels.
Can I use DSC without registering an MMSI?
No. DSC functionality requires a valid MMSI number programmed into the radio before emergency and calling features can be fully utilized.
Are built-in GPS VHF radios better?
Built-in GPS radios simplify installation and ensure position data is available without requiring a separate chartplotter or external GPS connection.
