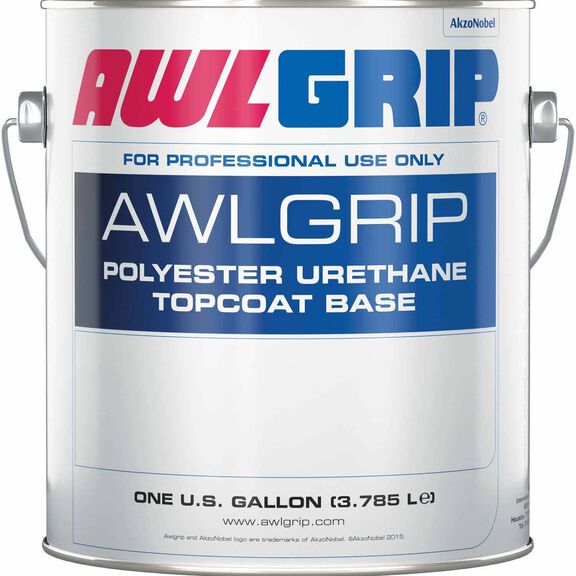

Linear Polyurethane High Gloss Topcoat
Complete Your Purchase
Many professionals consider Awlgrip Two-Part Linear Polyurethane to be the benchmark by which other topcoats are measured.
Famous for its high gloss and chip-resistant durability, Awlgrip two-part polyurethane enamel provides resin-rich, clean, bright color. May be applied by brush, spray or roller when used with the appropriate converters. Awlgrip paints are lead-free and comply with Federal regulations. Recommended only for professional applicators using proper safety equipment. Alwgrip Two-Part Linear Polyurethane should not be applied below the waterline. Once it cures, it requires very little maintenance and should not be waxed, buffed, compounded or polished.
Key Features
- High performance polyester urethane topcoat system
- Can be applied by spray or "roll and tip" methods
- Excellent color retention and chemical resistance
- Superior flow and leveling
- Tough and durable with outstanding longevity
- Repairable; conventional polyester urethanes can sometimes be difficult to repair
- For above-the-waterline application on properly prepared and primed fiberglass, wood, steel and aluminum substrates
Physical Data
- Base Formulation: To-component linear aliphatic polyester polyurethane
- Finish: High gloss
- VOC Base: 470g/l or 3.9lb./gallon
- VOC Spray Converter: (G3010) 591g/l or 4.9 lb./gallon
- VOC Brush Converter: (H3002) 276g/l or 2.3lb./gallon
Application
- Recommended Application Method: Brush, roller or spray
- Number of Coats Recommended: Spray: 2-3; Brush or roller: 2
- Primer Needed: Spray: 545 Primer; Brush or roller: AwlQuick Primer
- Drying Time to Recoat: Spray: 1-4hrs.; Brush or roller: At least 16hrs.
- Drying Time to Full Cure: 14 days
- Coverage: Spray: 530sq.ft./gal.; Brush or roller: 700-725 sq.ft/gal.
- Converters/Reducers/Accelerators: Selected according to application method (brush or spray), ambient temperature and other factors
Converters
Awlgrip two-part painting systems require the mixing of a base and a converter. Converters are sold separately.
For spray applications, Awlgrip is mixed in a ratio of 1:1, one part base to one part converter. (G3010).
For brush applications, Awlgrip is mixed in a ratio of 2:1, two parts base to 1 part converter. (H3002).
Both types of converters are listed below:
| Use | Description | AWLGP# | Model |
|---|---|---|---|
| For Spray: G3010 | Awl-Cat #2 Spray Converter-Quart | G3010/1QTUS | 339523 |
| For Spray: G3010 | Awl-Cat #2 Spray Converter-Gallon | G3010/1GLUS | 339515 |
| For Brush: H3002 | Awl-Cat #3 Brushing Converter-Pint | H3002/1PTUS | 339531 |
| For Brush: H3002 | Awl-Cat #3 Brushing Converter-1/2 Gallon | H3002/1HGUS | 339549 |
| For Spray: G3039 | Awl-Cat #5 Converter VOC Exempt-Gallon | H3002/1HGUS | 16361594 |
Reducers
The following reducers can be used with Awlgrip Topcoat. Please consult the Awlgrip Application Guide for guidance on reducer selection and use.
| Reducer | AWLGP# | Model |
|---|---|---|
| Fast Evaporating Topcoat Reducer | T0001/1GLUS | 340729 |
| Fast Evaporating Topcoat Reducer | T0001/1QTUS | 340711 |
| Fast Evaporating Topcoat Reducer and Equip. Cleaner | T0002/1GLUS | 340745 |
| Standard Reducer for Spraying Topcoat | T0003/1GLUS | 340760 |
| Standard Reducer for Spraying Topcoat | T0003/1QTUS | 340752 |
| Hot Weather Reducer | T0005/1QTUS | 297046 |
| Brushing Reducer | T0031/1GLUS | 340786 |
| Brushing Reducer | T0031/1QTUS | 340778 |
| Fast Reducer, VOC Exempt | OT0163/1GLUS | 14961270 |
| Fast Reducer, VOC Exempt | OT0163/1QTUS | 14961262 |
| Standard Reducer, VOC Exempt | OT0167/1GLUS | 14961296 |
| Standard Reducer, VOC Exempt | OT0167/1QTUS | 14961288 |
| Hot Weather Reducer, VOC Exempt | OT0168/1QTUS | 14961304 |
More information
For detailed application instructions, including product components, reducers, additives and auxiliary components see the Awlgrip Two-Part Linear Polyurethane Data Sheet. NOTE: Data sheets are sometimes revised by the manufacturer. Linked data sheets are believed to be accurate at the time of publication.
For the complete range of available colors, see the AWLGRIP®/AWLCRAFT® 2000/AWLCRAFT® SE Color Card.
