This product is not longer available, we recommend a similar product instead:
Clearance

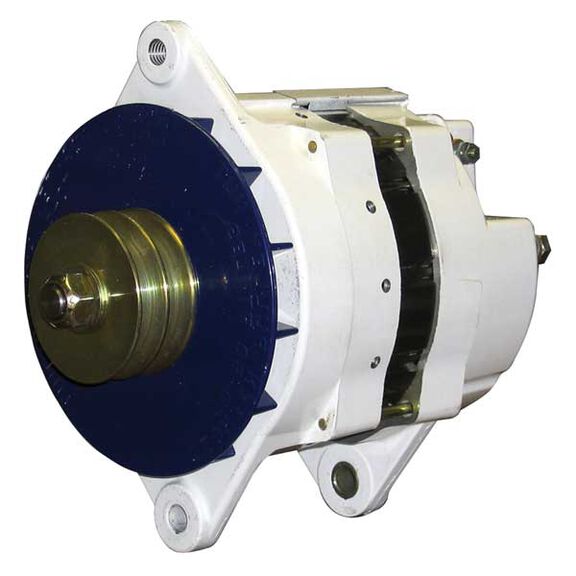

140 Amp/24 Volt Brushless 97 Series Large Frame Alternator
Model #
7807928
Mfg #
9704-24-140BLIG
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
140 Amp/24 Volt Brushless 97 Series Large Frame Alternator
Model #
7807928
Mfg #
9704-24-140BLIG
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
Large frame Balmar alternators deliver the power to handle larger battery banks and greater demands typical of offshore power and sailing yachts. Used in conjunction with Balmar Multi-Stage Regulators, these extra-high output alternators are designed to supply the sustained charging output required to meet big house and inverter loads while supporting extraordinary battery demands. All large frame alternators include an isolated ground.
Extra-large case 97-Series alternators deliver additional capacity and heavy-duty construction for sustained inverter loads and large-capacity battery banks. Case measures 6 3/4"dia. Brushless construction (BL).
- Case Construction: Powdercoated aluminum
- Number of Outputs: One
- Approvals: Ignition-safe design for diesel engines and meet USCG Title 33 safety standards. 97 and 98 Series are also safe for marine gas engines and meet SAE and international ISO 8846 and J1171 safety standards
- Warranty: One year
Dimensions
6 3/4" Diameter x 9 1/2" Height x 10 7/8" Length
Features
Ignition Safe Design
ISO Approved
Ignition-Safe Design for Marine Gas or Diesel Engines
,
Meets USCG Title 33
,
ISO 8838 and SAE J1181 Safety Standards
Mount Type
Dual Foot 4" Inner Diameter Saddle
Outputs
1 Output
Pulley Groove Type
Dual Groove
Rated Output Power - 2000 RPM Hot
60 Amps
Rated Output Power - 6000 RPM Hot
138 Amps
Type
Alternators
Voltage
12 Volts DC
Warranty
One Year
