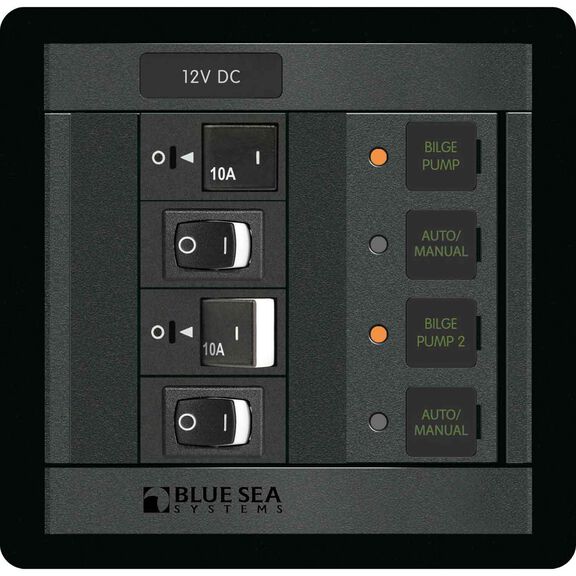

360 Panel Dual Bilge Pump Control

Bilge pump control panel for 360 panels

There are some breakers on the panel that should never be turned off. The bilge pump circuits are at the top that list. Blue Sea Systems designed this module for the 360 panels with that in mind. It is pre-assembled with two A-Series restricted OFF flat rocker breakers that can only be switched OFF using a slotted screwdriver to release the locking mechanism. Two associated rocker switches are installed to allow users to switch from auto to manual.  A LED indicates that power is present at the bilge pump float switch; another LED signals that the pump is running.

Key Features

• Pre-assembled for easy installation
• Compatible with 360 panels
• Features restricted OFF breakers to prevent accidental switching of 24 hour circuits
• Rocker switches allow for selection between manual and automatic modes
• Lifetime warranty

Specifications

• Nominal Voltage: 12V DC
• Height: 4 3/4"
• Width: 4 7/8"

Wiring Diagram

Common Application Diagram
