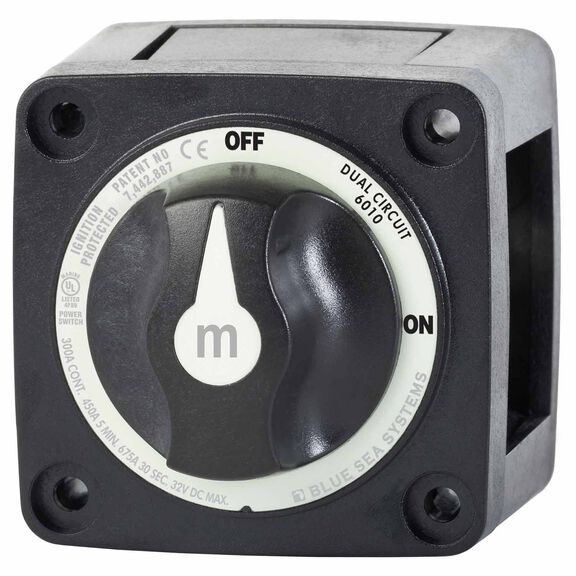

m-Series Mini Dual Circuit Battery Switch
BLUE SEA SYSTEMS m-Series Mini Dual Circuit Battery Switch
Blue Sea Systems m-Series battery switches are compact and waterproof and can be installed almost anywhere. The small footprint and three mounting options make installation easy. M-Series switches are ignition protected and can be located in the engine rooms of gasoline powered boats. A removable key adds a level of security and will prevent accidental power flow while servicing the electrical system. One piece tin-plated copper terminal studs are long enough to accept multiple cables and will handle the torque required to create a secure connection that minimizes resistance. For a small, versatile battery switch that is easy to install and use, look no further than the m-Series from Blue Sea Systems.
Features:
- Compact design makes installation in tight places easy
- Multiple mounting options; can be installed on the surface, rear, or front of the panel
- Removable knob for added security and provides service lock-out for safety
- Ignition protected and can be mounted in the engine room of gasoline powered boats
- Switch Type: Dual Circuit
- Switch Positions: 2
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 32V DC
- Stud Size: 3/8"
- Continuous Rating: 300A
- Battery Inputs: 2
- Mounting Holes: Accept #10 Screw
