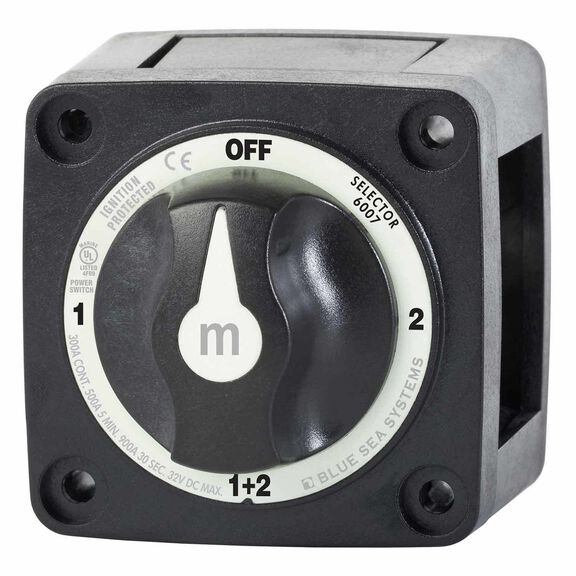

m-Series Mini Selector Battery Switch

BLUE SEA SYSTEMS m-Series Mini Selector Battery Switch

Blue Sea Systems m-Series battery switches are compact and waterproof and can be installed almost anywhere. The small footprint and three mounting options make installation easy. M-Series switches are ignition protected and can be located in the engine rooms of gasoline powered boats. A removable key adds a level of security and will prevent accidental power flow while servicing the electrical system.

One piece tin-plated copper terminal studs are long enough to accept multiple cables and will handle the torque required to create a secure connection that minimizes resistance. For a small, versatile battery switch that is easy to install and use, look no further than the m-Series from Blue Sea Systems.

Features:

• Compact design makes installation in tight places easy
• Provides an emergency combine feature to draw power from both batteries for starting or radio calls
• Multiple mounting options ; can be installed on the surface, rear, or front of the panel
• Make before break feature allows switching between battery banks without interrupting power
• Ignition protected and can be mounted in the engine room of gasoline powered boats
• Positions: 4
• Battery Combine: Yes
• Maximum Voltage: 32V DC

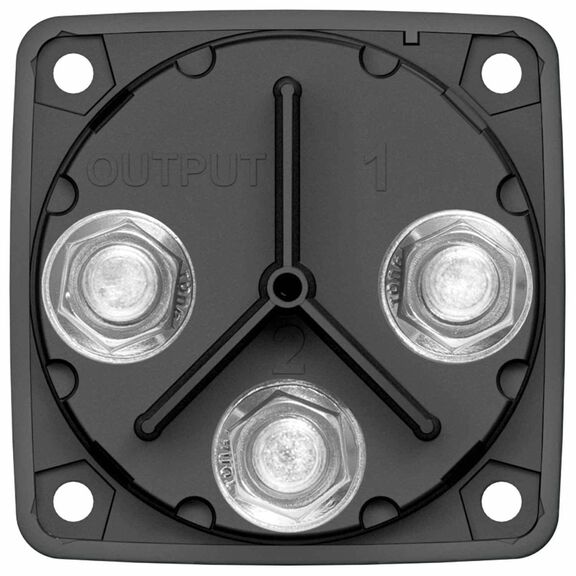

• Stud Size: 3/8"
• Continuous Rating: 300A
• Battery Inputs: 2
• Cable Size to Meet Ratings: 4/0 AWG
• Mounting Holes: Accepts #10 Screw
• Terminal Stud Size: 3/8"
