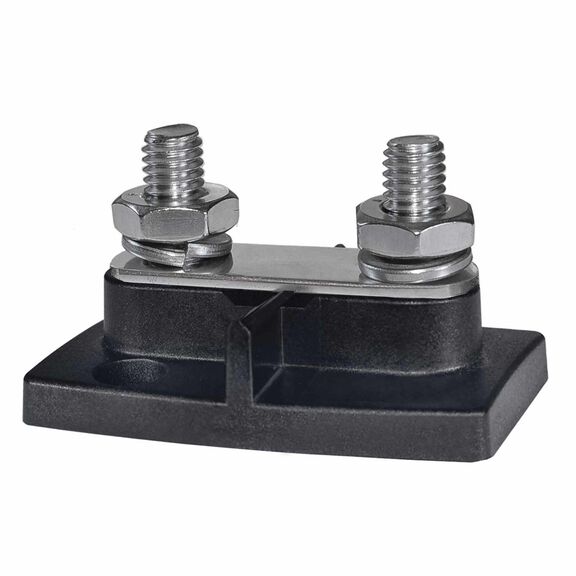

PowerBar Dual BusBar 200A, without Insulator covers
Model #
11037355
Mfg #
2020
$22.49
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
PowerBar Dual BusBar 200A, without Insulator covers
Model #
11037355
Mfg #
2020
$22.49
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Compact heavy duty bus bar for high amperage applications
If your installation is tight on space but requires a high amperage bus bar, look no further than the PowerBar from Blue Sea Systems. These two stud buses can handle up to 200A. Designed for heavier cables these bus bars are ideal for, windlass, davits, and other high current circuits. 3/8" studs provide a solid anchor and will accept the torque required to create the best possible connection. Two 1/4" mounting holes secure the base and make attaching larger cables easy.
Key Features
- Rated for 200A; for use as a main DC negative or positive on larger boats
- 3/8" stainless steel terminal studs support larger cables and handle the torque for the best contact
- Lexan® polycarbonate base
- 1/4" mounting holes that secure bus bar and support larger cabling
- Available insulating cover protects terminal studs from accidental contact and cross current shorts satisfies USCG and ABYC requirements for insulation.
- Lifetime warranty
Specifications
- Maximum Voltage: 48V
- Continuous Rating: 200A
- of terminal studs: 2
- Terminal Stud Size: 3/8"
- Terminal Screw Size: N/A
- Mounting Fasteners: #10 screws
- Base material: Reinforced Lexan® Polycarbonate
- Material: Tin-plated copper CDA 110/UNS 1000,

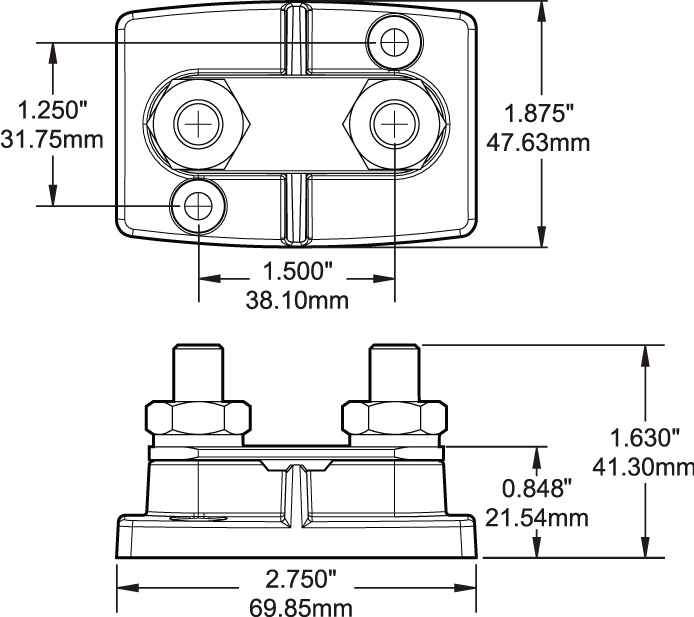

- Dimensions: 2 3/4"L x 1 4/8" W x 1 5/8" H
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Capacity
AC: 545 Amps at 300 Volts
,
DC: 600 Amps at 48 Volts
Dimensions
2 3/4" Length x 1 7/8" Width
Mounting Hardware
Four 1/4" Round Head Screws (Sold Separately)
Type
Bus Bars
Warranty
Five Years
