This product is not longer available, we recommend a similar product instead:

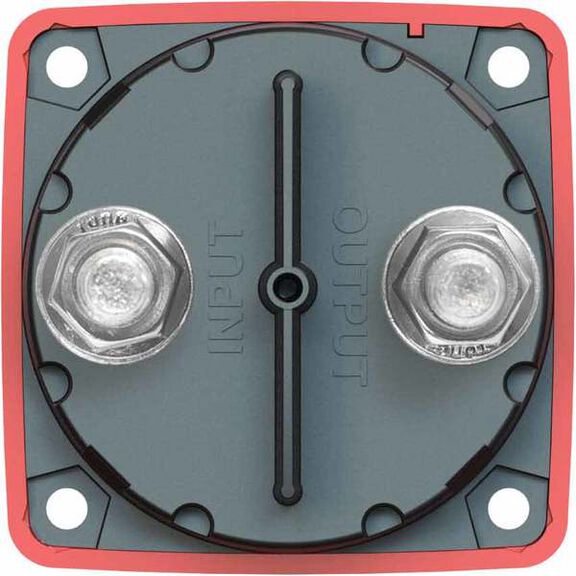

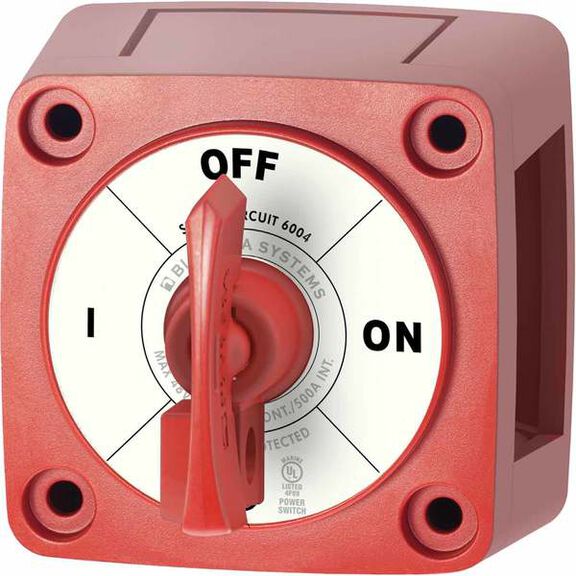

Single Circuit ON-OFF with Locking Key
Model #
17949975
Mfg #
6004
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
Blue Sea Systems' Single Circuit ON-OFF is 300 Amps continuous rating for outboards and small gasoline or diesel engines. Tin-plated copper studs allow for maximum conductivity and corrosion resistance. Studs accept 3/8" (M10) ring terminals and 7/8" stud length accepts multiple cable terminals. Blue Sea Systems one-piece terminal stud design never loosens over time. One-piece stainless flange nuts ensure safe and secure connections. Isolating cover protects rear contacts and breakout tabs allow wire access in any direction.
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Amperage
300 Amps
Cold Cranking Amps
900 Amps (30 Seconds)
Color
Red
Dimensions
3.88" x 6.63" x 3"
ISO Approved
IP 66
,
ISO 8846 Marinc
,
SAE J1171 Marine
,
UL 1077
,
UL 1500
Type
Lockable On Off Switches
Voltage
48 Volts DC
Warranty
Lifetime
