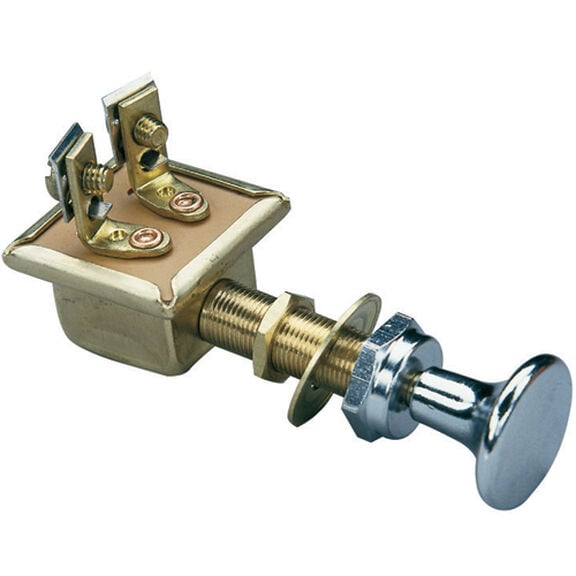

M-482 OFF/ON Push-Pull Switch
A straightforward push-pull switch that can handle loads of applications
This small On/Off push-pull SPST (single pole, single throw) switch with an added gasket sealed body can be used in any DC circuit that requires an on-off function. Because this style of switch has been used by many boat builders, the chrome-plated knob and face-nut look at home on the dash of a variety of boats; simply drill a 3/8" hole and secure the switch using the face-nut. The removable knob exposes a threaded stem that may be compatible with the existing knob of a failed switch allowing you to regain function while keeping the original appearance. The brass terminals stand-off of the switch body and make connecting ring terminals easy. The uses for this small switch are practically limitless.
Key Features
- Removable chromed knob and face hardware
- Gasket sealed case for added protection against dust and moisture intrusion
- Push-pull normal off configuration
- Compatible with surfaces up to 1" thick
- Brass terminals with included screws
Specifications
- Switch Type: SPST (single pole, single throw)
- Positions: 2
- Amperage: 10A
- Voltage: 32V
- Cable Size: 6AWG
- Conductors: 2 with brass screws
- Material: Plated brass knob, brass mounting stem, gasket sealed brass body
- Dimensions: 1 1/8"W x 1 1/8"L x 3"D, 3/8" diameter stem
