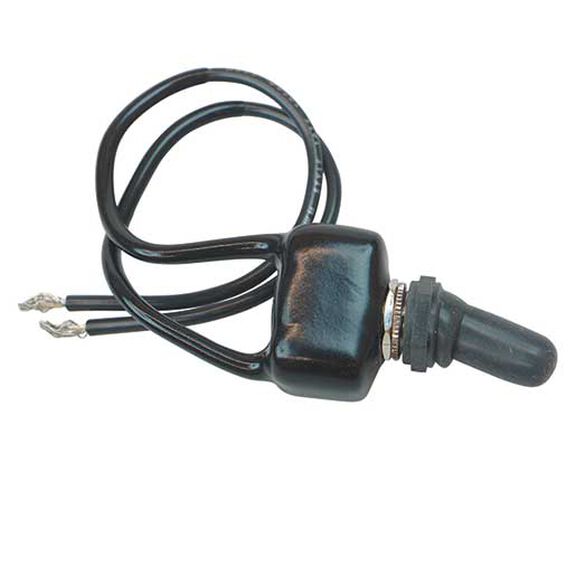

A toggle switch that is vinyl dipped for added protection in harsh environments
This small On/Off toggle SPST (single pole, single throw) switch will fit just about anywhere you can drill a 15/16" mounting hole. The added protection of its vinyl dipped body allows installation in locations more susceptible to moisture and condensation. A rubber sleeve over the toggle helps to keep dust and moisture out of the switch mechanism. 6" leads, when used with heat shrink butt connectors, provide an excellent seal that will combat corrosion better than conventional spade connectors. The uses for this small switch are practically limitless.
Key Features
- Vinyl dipped switch body
- Rubber sleeved switch lever
- Compatible with surfaces up to 3/16" thick
- Plasticized coated hex nut
Specifications
- Switch Type: SPST (single pole, single throw)
- Positions: 2
- Amperage: 25A
- Voltage: 12V
- Cable Size: 6AWG
- Conductors: 2 with brass screws
- Material: Vinyl coated brass with silver contacts
- Dimensions: 7/16"W x 3/4"L x 7/16" D (approximate)
Dimensions
13/32" Length x 15/32" Diameter Stem. Fits Panels To 3/16" Thick
Features
Water Resistant
Type
2 Position
,
Toggle
Voltage
12 Volts DC
Warranty
One Year
