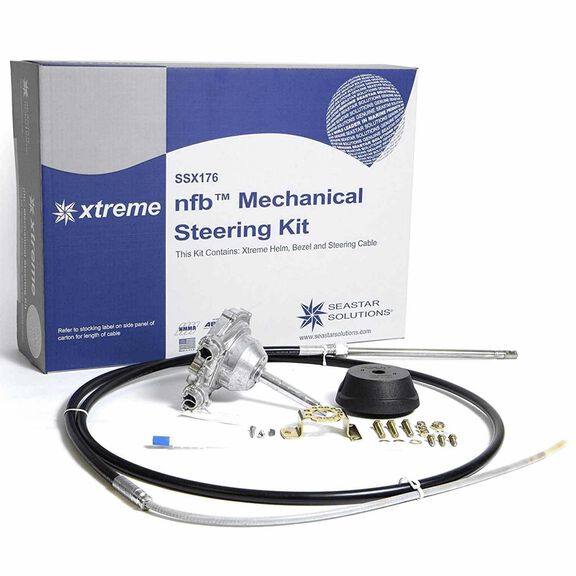

XTREME NFB Steering Kit

XTREME™ No FeedBack Mechanical Steering Systems minimize the effect of engine torque and backlash for smooth, nearly effortless boat handling.

Spending your boating day fighting engine torque is no fun. Seastar Solutions eliminates this problem with easy-to-install XTREME™ No FeedBack Mechanical Steering Systems that combine their XTREME™ cable design with a helm that features high-efficiency gearing and an improved No FeedBack (NFB) clutch. This system is especially beneficial for boats with higher horsepower engines or hulls with large wetted surfaces.

Want your boat to handle like your car? Upgrade with the Dometic Xtreme Power Assist! Enjoy seamless compatibility with all Dometic/SeaStar, Teleflex and most other mechanical steering systems. Elevate your comfort, convenience, and performance today!

System Overview

XTREME™ cables feature splined ridges on the inner liner that reduce internal friction, allow for a tighter fit to minimize lost motion and extend cable life. Cables are combined with the XTREME™ helm, which provides an enhanced level of feel and lower effort at the wheel. The helm boasts an improved No Feedback (NFB) clutch mechanism with a smooth release that minimizes the effects of engine torque and reduces backlash. Compact Zamac housing and new style bezel offer reduced weight, superior strength and, with a smaller footprint than previous Teleflex helms, simplifies upgrading existing systems to this latest design.

The XTREME™ steering system offered here is the standard, fixed helm design. For added comfort, conveneince and control, the XTREME™ helm is also available as a tilt helm, with 48° articulation and five positive lock positions to ensure maximum comfort and control whether seated while cruising or when standing during close maneuvers or docking.

NFB Helm Key Features:

• High-efficiency gearing
• Improved No FeedBack (NFB) clutch creates smoother release, minimizes effects of torque and backlash
• New drive train enhances level of feel and reduces effort at the wheel
• Compact Zamac housing and new style bezel reduces weight, improves strength and simplifies upgrades

XTREME™ Cable Key Features:

• Splined ridges on the inner liner reduce internal friction
• Tighter fit minimizes lost motion and extends cable life

Specifications:

• Steering Type: Rotary No-FeedBack
• Boat Size: Boats w/outboards up to V-4. Speeds to 50mph.
• Turns Lock-to-Lock: 5
• Steering Wheel (sold separately): Up to 16" diameter; up to 5" dish
• Steering Wheel Shaft: 3/4" tapered
• Cable Type: SSCX XTREME
• Installation: See cable measuring guide
• Warranty: Two-year warranty

How to measure for steering cables

Measure twice and order once! If you have already disposed of your old steering cables without first recording the cable's length, here is the Teleflex (now SeaStar Solutions) Guide to Measuring for Steering Cables.

More Information

For an overview of included components, available options and dimensions, see the XTREME™ No FeedBack Mechanical Steering System Manual.
