187 Series Panel Mount Circuit Breakers
Model #
22311302
Mfg #
4707-200
$89.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
MADE IN THE USA
Amperage:
200 Amp
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

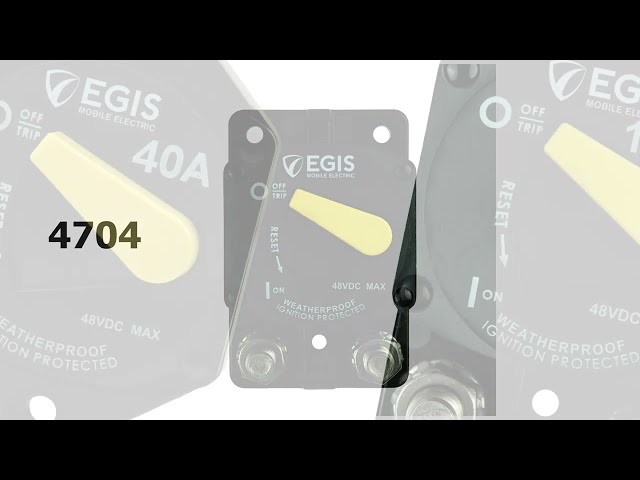

EGIS MOBILE ELECTRIC 187 Series Panel Mount Circuit Breakers
The Egis Mobile Electric 187 Series Circuit Breakers protect electrical circuits from short circuits and thermal overload while providing robust manual circuit switching for reliable live-load switching. The sealed cases keep your circuit protection safe from the environment and High voltage, with circuit-interrupt current capability that protects circuits connected to large series- or parallel-connected battery banks.
Key Features
- Sealed Against Dust and Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
- Easily supports 12 and 24 Vdc applications while offering advanced protection for 36 & 48 V DC
- High interrupt current safely protects circuits connected to large paralleled Battery Banks with significant available power
- Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems ,regardless of the location
- High 2,000-cycle switching endurance
- Mounting Type: Panel
- Max Voltage: 48Vdc
- Short Circuit Interrupt Rating: 5,000 Amps at 14Vdc
- Short Circuit Interrupt Rating: 3,000 Amps at 28Vdc
- Short Circuit Interrupt Rating: 1,500 Amps at 48Vdc
- Hardware Material: Stainless, Self-Locking
- Max Operating Temperature: 85°C (185°F)
- Min Operating Temperature: -40°C (-40°F)
- Mechanical Vibration: 12g
- Mechanical Shock: 35g / 10cycles
