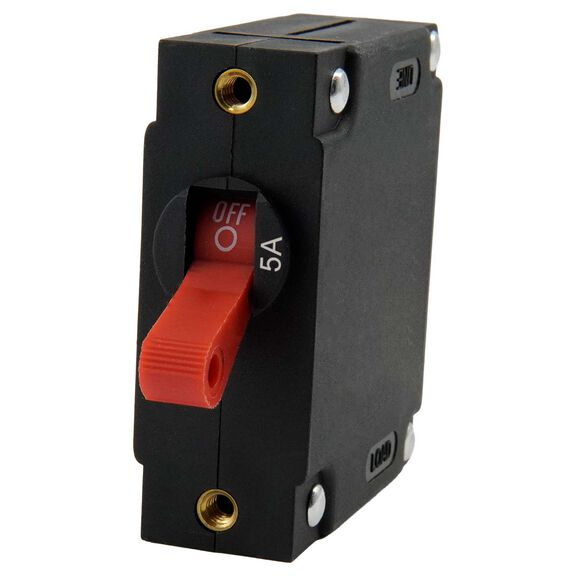

A-Series AC/DC Single Pole Panel Mount Circuit Breakers
Model #
21976048
Mfg #
3221-25
$24.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
A-Series AC/DC Single Pole Panel Mount Circuit Breakers
Model #
21976048
Mfg #
3221-25
$24.99
Color:
Red
Amperage:
25 Amp
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
ANCOR
$0.07
-
$0.17
Price reduced from
$0.59
to
-
Price reduced from
$0.79
to
EGIS MOBILE ELECTRIC A-Series AC/DC Single Pole Panel Mount Circuit Breakers
Single-Pole, panel-mount form factor, white toggle-style actuator for on/off control, includes mounting screws.
Key Features
- 1,500 @80Vdc Ampere Interrupting Capacity (AIC)
- 18-8 Stainless Steel Self-Locking Hardware Material
- CE Marked
- UL 1077 Regulatory Compliance
- Mounting Type: Panel
- Max Voltage: 80Vdc / 277Vac
- Short Circuit Interrupt Rating: 5kA / 277Vac, 1.5kA / 80Vdc
- Hardware Material: 18-8 Stainless Steel / Self Locking
- Mounting Screw Size: #6-32
- Terminal Screw Size: #10-32
- CE Marked: Yes
- Max Operating Temperature: 85°C (185°F)
- Min Operating Temperature: -40°C (-40°F)
- Regulatory Compliance: UL 1077
- Mechanical Vibration: 10g
- Mechanical Shock: 100g
Compatibility
REPLACES BLUE SEA SYSTEMS #7217
