C-Series Panel Mount Circuit Breakers
Model #
P021976196
Mfg #
$49.99
-
$139.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
C-Series Panel Mount Circuit Breakers
Model #
P021976196
Mfg #
$49.99
-
$139.99
Amperage:
Number of Poles:
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
ANCOR
$0.07
-
$0.17
Price reduced from
$0.59
to
-
Price reduced from
$0.79
to

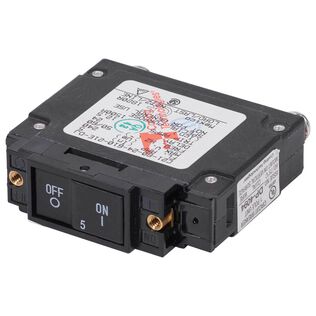

EGIS MOBILE ELECTRIC C-Series Panel Mount Circuit Breakers
Panel mount form factor, white toggle style actuator for on/off control, includes mounting screws.
Key Features
- 2,000 @80Vdc Ampere Interrupting Capacity (AIC)
- 5,000 @277Vac Ampere Interrupting Capacity (AIC)
- 18-8 Stainless Steel Self-Locking Hardware Material
- CE Marked
- UL 1077 Regulatory Compliance
- Mounting Type: Panel
- Max Voltage: 125Vdc / 277Vac
- Short Circuit Interrupt Rating: 5kA / 277Vac, 2kA / 125Vdc
- Hardware Material: 18-8 Stainless Steel / Self Locking
- Mounting Screw Size: #6-32
- Terminal Stud Size: M6 (Accepts 1/4" Ring)
- CE Marked: Yes
- Max Operating Temperature: 85°C (185°F)
- Min Operating Temperature: -40°C (-40°F)
- Regulatory Compliance: UL 1077
- Mechanical Vibration: 10g
- Mechanical Shock: 100g
