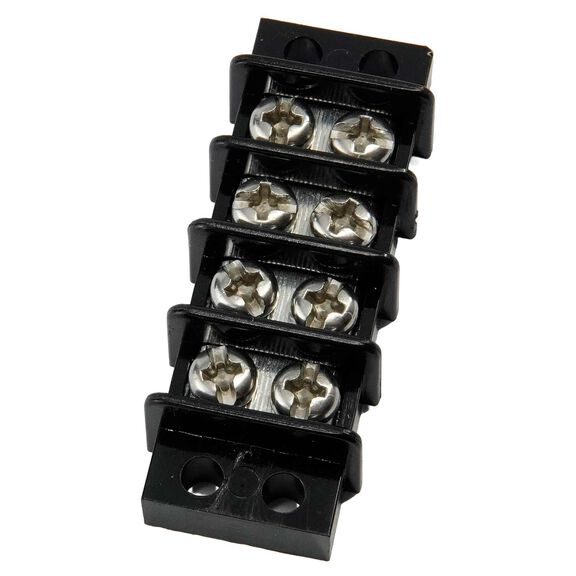

EGIS MOBILE ELECTRIC Terminal Blocks
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. 125 Volt AC or DC rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac application.
Key Features
- Marine grade materials ensure long lasting reliablility in harsh environment applications
- 125 Volt AC or DC rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac application
- Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls
- Anti-Rotation Ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long
- Conductor Material: Tin Plated Copper Alloy
- Max Voltage: 240 VAC/VDC
- Maximum Continuous Current: 20 Amps, 30 Amps or 65 Amps
- Hardware Material: Stainless Steel
- Mounting Screw Size: #8 (M4) or #10 (M5)
- ROHS Compliant: Yes
- CE Marked: Yes
- Max Operating Temperature: 100°C / 212°F
- Min Operating Temperature: -40°C (-40°F)
- Max Screw Torque: 10 in-lbs (1.1 N-m), 15 in-lbs (1.7 N-m) or 25 in-lbs (2.8 N-m)
- Mechanical Vibration: 10g
- Mechanical Shock: 100g
- Dielectric Strength: 2000VAC
