New
Terminal Blocks
Model #
21976360
Mfg #
2230-10
$14.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Number of Circuits:
10 Circuits
Amperage:
30 Amps
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
ANCOR
$0.89
-
$8.74
Price reduced from
$5.09
to
-
Price reduced from
$49.99
to
html

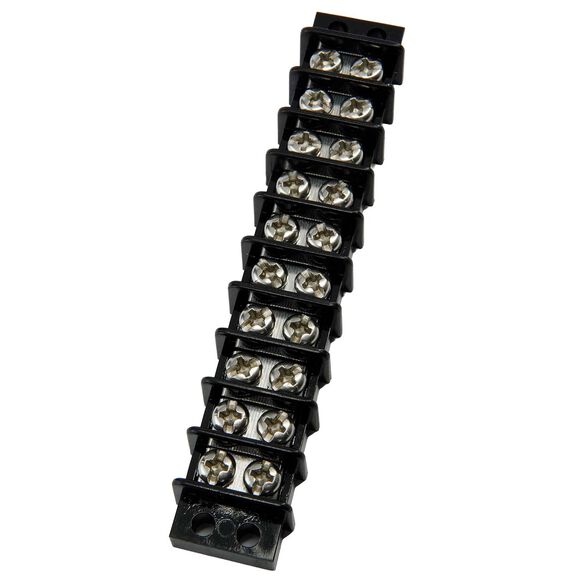

EGIS MOBILE ELECTRIC Terminal Blocks
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. 125 Volt AC or DC rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac application.
Key Features
- Marine grade materials ensure long lasting reliablility in harsh environment applications
- 125 Volt AC or DC rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac application
- Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls
- Anti-Rotation Ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long
- Conductor Material: Tin Plated Copper Alloy
- Max Voltage: 240 VAC/VDC
- Maximum Continuous Current: 20 Amps, 30 Amps or 65 Amps
- Hardware Material: Stainless Steel
- Mounting Screw Size: #8 (M4) or #10 (M5)
- ROHS Compliant: Yes
- CE Marked: Yes
- Max Operating Temperature: 100°C / 212°F
- Min Operating Temperature: -40°C (-40°F)
- Max Screw Torque: 10 in-lbs (1.1 N-m), 15 in-lbs (1.7 N-m) or 25 in-lbs (2.8 N-m)
- Mechanical Vibration: 10g
- Mechanical Shock: 100g
- Dielectric Strength: 2000VAC
Compatibility
REPLACES BLUE SEA SYSTEMS #2510
