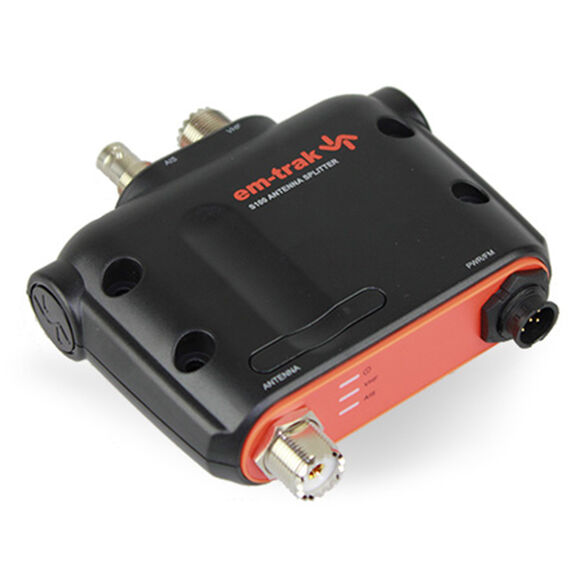

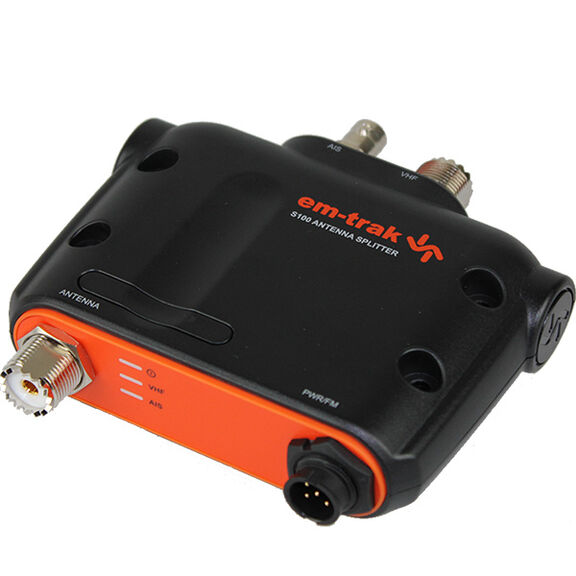

AIS S100 Antenna Splitter
Ideal for AIS installations where an existing VHF antenna is already installed.
AIS. VHF and FM from one antenna: Simplify Class B AIS installation by using a single VHF antenna to combine AIS and VHF operations, saving both time and money and making installation quick and easy. With the S100 a single VHF antenna can simultaneously support the full operation of your AIS transceiver, VHF radio and FM radio.
Zero loss splitter: S100 is a zero-loss splitter, so no loss is introduced into received signal, maintaining your existing VHF and AIS range. With failsafe operation, it guarantees priority to VHF voice and DSC radio operation in the event of a power failure. The S100’s core technology enables it with superior performance which translates into zero performance loss for the connected devices.
Use your existing VHF antenna: The S100 is an ideal complement to a good quality Class B or receive-only AIS where there is an existing VHF antenna available that is currently used for your VHF radio.
Specifications
- Dimensions: 4 3/4" x 3 1/8" x 2"
- Voltage: 12/24V DC
- Amperage: Less than 150mA continuous @ 12V
- Connectors: SO-239 sockets for VHF antenna and radio connections. BNC socket for AIS transponder connection
- User Interfaces: Green LED for power indication, Amber LED for VHF TX indication, Amber LED for AIS TX indication
- Waterproof Rating: IPX2
- Warranty: Three years
What's in the Box
- AIS S100 Antenna Splitter
- Power cable
- AIS interface cable
- VHF interface cable
- Mounting screws
- Quick Start Guide
- Manual
