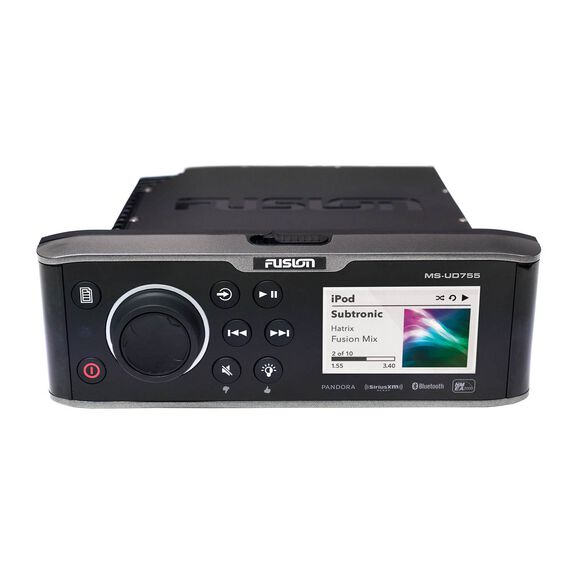

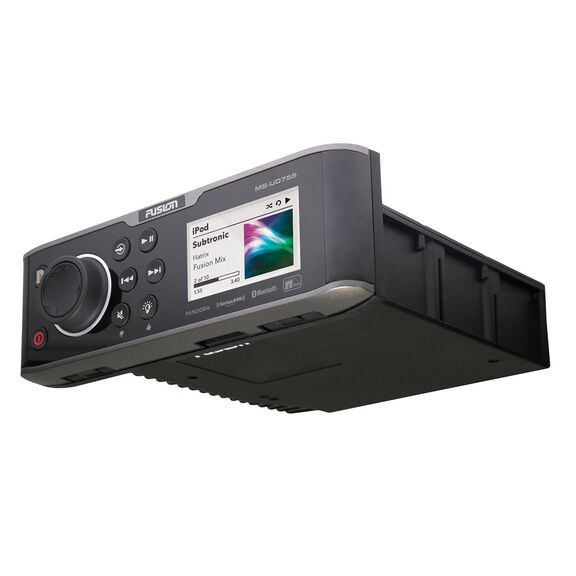

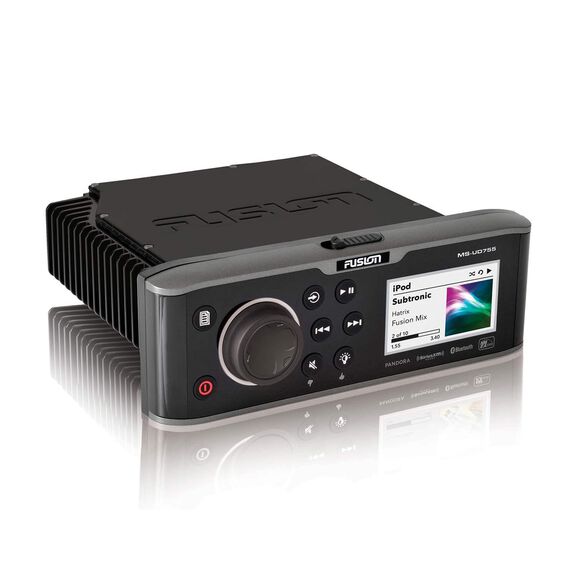

MS-UD755 Marine Digital Media Stereo with UNI-Dock

A four-audio-zone, NMEA 2000-capable marine hub for all your boat's entertainment, the MS-UD755 includes an internal UNI-Dock that protects and charges your Apple or Android smartphone.

Fusion's MS-UD755 takes care of your onboard entertainment needs, delivering wired or wireless control from a FUSION-Link compatible multi-function display. It's got built-in Bluetooth connectivity so you can stream music wirelessly with your smartphone. Control volume up or down in up to four distict zones, for custom sound on the foredeck, main salon, helm or cabin.

MS-UD755 is the next generation of high-end marine entertainment. Here are sone of the reasons why:

Key Features

• Internal UNI-Dock: The MS-UD755 features an internal UNI-Dock for the charging, secure protection and playback of your favorite media devices. Supporting all of your media device requirements, including compatible Apple^® iOS and MTP Android™ / Windows^® devices (subject to device size constraints, see below*), it also features internal and rear accessible USB connectors for the playback of your USB media devices.
• FUSION-Link^® Control (Wired): Enables direct stereo control from a compatible multi-function display or NRX series wired remote control when utilizing an existing NMEA 2000 or Ethernet network.
• FUSION-Link^® Control (Wireless): Download the free Apple or Android FUSION-Link remote control app from iTunes™ or Google Play™ to control the onboard entertainment experience; Available over Bluetooth and Wi-Fi^® (Note: Wi-Fi control requires a wireless Ethernet router)
• A2DP/AVRCP Bluetooth® Streaming: Stream your family’s favorite soundtrack from any compatible device, with track, album and artist info displayed, with navigation available from the stereo or connected device
• Apple iOS^® and MTP Android™/Windows^® Media Playback: Unparalleled support of the world’s most popular media devices, and the smartest interface for browsing your music library
• Multi-Zone™ Technology: Four independent audio zones are available, each with advanced localized menu controls, including zone naming; Note: Line Out Zones require additional amplification
• Optically bonded LCD display: A color widescreen LCD display, optically bonded to improve durability and optimized for daylight viewing
• Dual USB ports: Internal and Rear accessible USB connectors are provided, to support all your media device requirements
• Side-fin cooling: Amplifier components are optimally configured for the side-fin aluminium heat sink, producing greater thermal efficiency
• Glass filled composite chassis: Structurally rigid and incredibly lightweight, the composite chassis improves environmental protection and electrically isolates the chassis
• Class-D amplifier: Provides higher RMS output than a typical stereo, for louder and clearer audio while drawing less current

What's in the Box

• Marine receiver
• Power/ground harness
• Speaker harness
• 6" 30-Pin to USB adapter
• 5.5" Lightning-to-USB adapter
• 5.5" microUSB-to-USB adapter
• Male mono-RCA to female stereo-RCA splitter
• Front-panel cover
• 4 Self-tapping screws
• 4 Machine screws
• 2 Brackets
• Foam gasket
• Quick Start Manual
• Installation Instructions
• Important Safety/Product Information
• Mounting Template

*UNI-Dock Compatibility

• Compatible Apple Devices: iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6 Plus, iPhone 6s Plus, iPhone 6/6s, iPhone 5/5c/5s/4s, iPod touch 6th/5th gen, iPod nano 7th gen
• Smartphone size: Device measurements must be equal to or less than the following: 5 1/2"L x 2 7/8"W x 1/2"D (140mm L x 73mm W x 12mm)
