Auxiliary Outboard Bracket-Stainless Steel Body
Model #
315119
Mfg #
71056:01
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.

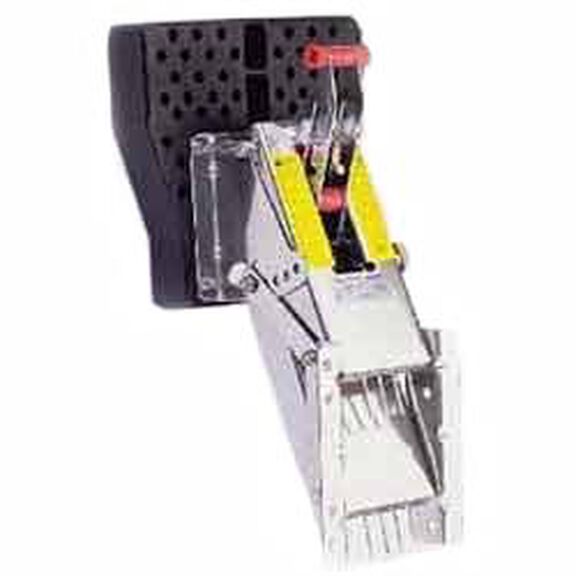

Auxiliary Outboard Bracket-Stainless Steel Body
Model #
315119
Mfg #
71056:01
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
Gets your engine clear of the water when not in use to eliminate propeller drag and to protect the lower unit. Brackets adjust to transoms with plus or minus angles from 7° to 35° in 7° increments. Stainless steel torsion springs counter-balance the weight of the engine and can lock in either Up or Down position. Three-year warranty. HP rating up to 20hp. Maximum weight: 115lbs.; Vertical lift: 11 1/4".
- Get your engine clear of the water when not in use to eliminate propeller drag and to protect the lower unit
- Brackets adjust to transoms with plus or minus angles from 7° to 35° in 7° increments
- Stainless-steel torsion springs counter-balance the weight of the engine and can lock in either Up or Down position
Note: Not recommended for 4-stroke engines. See Offshore Auxiliary Outboard Bracket (Model 193328) for 4-stroke applications.
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Best Use
Vertical Lifting Bracket
Compatibility
Universal
Dimensions
11 1/2" Height x 10 3/4" Width x 2" Thickness
,
11 1/4" Vertical Travel
Horsepower
20 Horsepower
Material
Stainless Steel
,
Poly Board
Type
Motor Mounts
Warranty
One Year
Weight Capacity
115 Pounds
