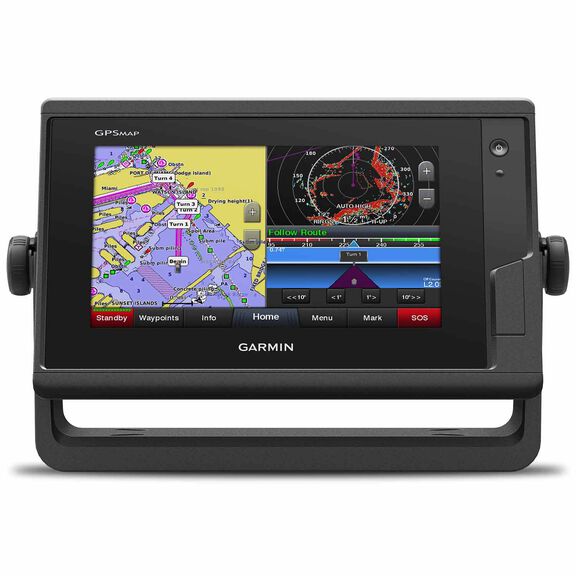

GPSMAP 742 Chartplotter with U.S. BlueChart g3 and LakeVu HD Inland Charts

Full chartplotting capability, wireless connectivity and much more in this 7" diagonal chartplotter.

Experience an advanced navigation solution with the compact GPSMAP® 742 chartplotter, with a sunlight-readable multi-touch touchscreen display. With built-in wireless connectivity for Garmin mobile apps and VIRB® action camera integration, you can stay connected to the newest media. Its 10Hz GPS/GLONASS receiver delivers smooth on-screen navigation.

This compact plotter offers full-network compatibility for the Garmin Marine Network, which allows support for sharing sonar, maps, user data, radar, IP cameras and Panoptix all-seeing sonar among multiple units. Plus, there's NMEA 2000 and NMEA 0183 support for autopilots, digital switching, weather, VHF, AIS and other sensors.

Preloaded premium mapping features both coastal and inland mapping, including both BlueChart® g3 HD charts for the US, Canada and Bahamas and LakeVü HD maps.

Key Features

• 7" high-resolution display with intuitive touchscreen controls.
• NMEA 2000 and NMEA 1083 support for network connectivity including autopilots, digital switching, weather, FUSION-Link, VHS, AIS and more
• LakeVü HD provides highly detailed freshwater charts that include more than 17,000 U.S. lakes, rivers and reservoirs and 13,000 HD lakes with 1' contours shoreline to shoreline
• BlueChart g3 HD provides basic coastal charts, tidal stations, currents, depth contours, IALA symbols and it even includes fishing charts
• Heading and position are refreshed 10 times per second thanks to the built-in 10 Hz GPS and GLONASS receiver
• You can load up to 5,000 accurate waypoints and find them easily
• The GPSMap 742 includes expandable memory to accommodate options including BlueChart^® g3 Vision^® HD, which adds Auto Guidance and other features Garmin New Chart Guarantee
• Built-in SailAssist is a pre-race guidance page that shows your virtual starting line as well as data fields showing laylines, time until start and a race timer that can be synchronized across the NMEA 2000 onboard network
• Other sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data
• GPX Waypoints Transfer makes it easy to transfer waypoints from another device to your new Garmin chartplotter

What’s in the Box

• GPSMap 742
• Power cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective Cover
• Trim piece snap covers
• Documentation

Specifications

• Display Type: Multi-touch touchscreen WVGA
• Screen Size: 7" diagonal
• Screen Resolution: 800 x 480
• Included Cartography: BlueChart® g3 HD coastal/LakeVu HD inland
• Receiver Type: Internal 10Hz GPS/GLONASS
• NMEA Interface: NMEA 0183/2000, Garmin Marine Network; compatible with Garmin radar, gWind wireless instruments, VIRB® cameras
• Dimensions: 8 13/16"W x 5 5/8"H x 2 1/8"D
• Waterproof Rating: IPX7
• Warranty: Two years
