This product is not longer available, we recommend a similar product instead:

PowerLED Bi-Color Downlight 10 to 30V DC Brushed Stainless Steel Trim Ring Warm White/Red 2 x 3 Watts High Flux LED IP65

Model # 17187790 Mfg # ILIM30452
4.5 out of 5 Customer Rating
Advice & How-To
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.

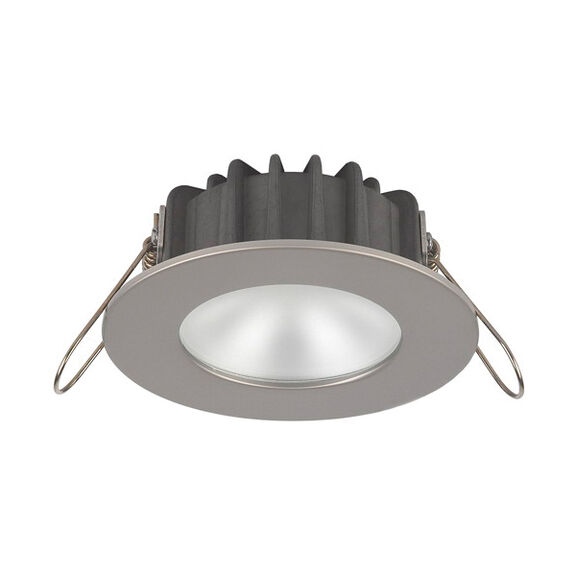

PowerLED Bi-Color Downlight 10 to 30V DC Brushed Stainless Steel Trim Ring Warm White/Red 2 x 3 Watts High Flux LED IP65
Model # 17187790 Mfg # ILIM30452
4.5 out of 5 Customer Rating
Advice & How-To
Out Of Stock Item out of stock get notified when back in stock:
Thank you! We'll let you know when it's back in stock.
+

The Ventura powerLED recessed spot is Imtra's most popular PowerLED marine lighting spot. Its light output exceeds that of legacy 20 Watts halogen spots while consuming 80% less power. So it is easy to see why so many boat builders have made the switch to Ventura. Proprietary drive electronics & carefully designed optics result in a more blended aperture appearance (vs. halogen) resulting in light which is free of annoying artifacts or distracting hot spots. Imtra's carefully designed thermal management system results in maximum life with minimal lumens depreciation over its working life (50000 hr +). Like all of Imtra PowerLED spots & fixtures, the Ventura is 100% dimmable when used with Imtra's power-saving PWM momentary digital dimmer. Both LED colors in the bi-color models are dimmable or can be switched simply by using a 3-position toggle switch. Choose between flat-round, hard-square or rounded-square bezel shapes. Finish options include high polish stainless steel, brushes stainless steel & white powder coat. Custom colors are available on request. The Ventura conveniently installs with self-adjusting stainless steel springs. Made in the USA & confidently offered with a 5 years warranty!

Features & Benefits:

  • Ultra flat stainless steel bezel
  • High lumen output
  • Solid-state circuitry
  • Minimal power consumption
  • Completely sealed LED sub-assembly
  • Integrated drive electronics (no external driver)
  • Both LED colors fully dimmable
  • LED Color: Warm White/Red
  • Trim Ring Material: Stainless Steel
  • Trim Ring Finish: Brushed Stainless steel
  • Lens Material: Frosted Glass
  • Method: Spring Mount
  • IP Rating: IP65
  • Electrical Protections: Reverse Polarity, 200 Volts spike protection, Transient Protection
  • Beam Angle: 90 Degrees
  • Lifetime Hours: 50000 hr (70% Light Output)
  • Luminous Flux: 183 lumens
  • Certification & Compliance: CE-EMC, RoHS, UL 1598, UL1149, UL 8750, CSA C22.2#250.0, Class III, F-Rated
  • Halogen Equivalency: 25 Watts
  • Color Rendering Index (CRI): 83
  • Trim Ring Dimensions: 3.18" Diameter x 0.12" Height
  • Recessed Depth: 1.14"
  • Cutout Diameter: 2.63"
  • Correlated Color Temperature (CCT): 2800K
  • Dimmer Module: ILIM80120
  • Dimmer Interface: Pulse Width Modulation
  • Driver: Integrated
  • Dimmer Control Interface: 1P/1T NO or 1P/2T NO/NO Momentary Push Button Switch
  • Dimming Range: 10 to 100%
  • Warning
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Dimensions 3.18" Diameter x 1.14" Depth
    Material Anodized Aluminum Housing , Frosted Glass Lens
    Mounting Hardware Spring (Included)
    Type Down Light
    Voltage 10 to 30 Volts DC
    Warranty Five Years
    Wattage 4.7 Watts
