IMTRA CORPORATION

PowerLED Bi-Color Downlight 10 to 30V DC Polished Stainless Steel Trim Ring Warm White/Blue LED IP65

Model # 17188194 Mfg # ILIM30967
3.4 out of 5 Customer Rating
Advice & How-To
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Not sure what to buy? Let us help! Not sure what to buy? Let us help!

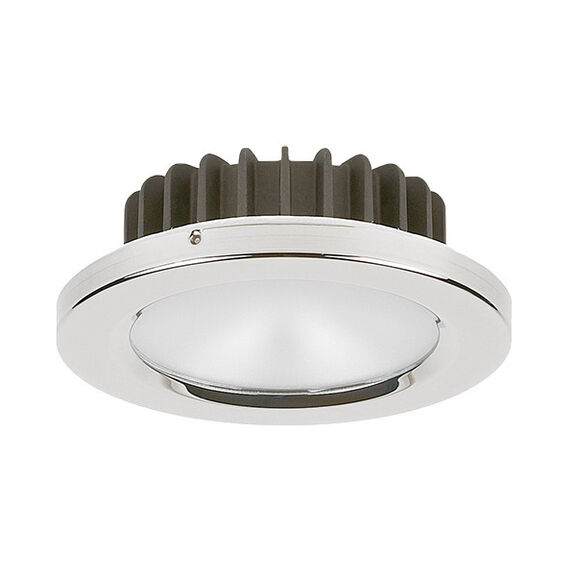

PowerLED Bi-Color Downlight 10 to 30V DC Polished Stainless Steel Trim Ring Warm White/Blue LED IP65 image number 0
IMTRA CORPORATION
PowerLED Bi-Color Downlight 10 to 30V DC Polished Stainless Steel Trim Ring Warm White/Blue LED IP65
Model # 17188194 Mfg # ILIM30967
3.4 out of 5 Customer Rating
Advice & How-To
Out Of Stock Item out of stock get notified when back in stock:
Thank you! We'll let you know when it's back in stock.
−
+

The bi-color offers a full-brightness white LED (warm white or cool white) that will match other Imtra PowerLED spots & fixtures in both style & light output with the addition of a secondary color. Both LED colors are fully dimmable with the use of the PWM dimmer & a momentary switch. A 3-position switch may be used to toggle between the two different LED colors & full off. This light is ideally suited for the helm area & night-time navigation.

Features & Benefits:

  • Anodized aluminum construction for optimal thermal management
  • Both LED colors fully dimmable
  • Low profile design
  • Substantial power savings
  • No radiated heat
  • Maintenance free: No more bulb changes
  • LED Color: Warm White/Blue
  • Trim Ring Material: Stainless Steel
  • Trim Ring Finish: Polished Stainless Steel
  • Lens Material: Frosted Glass
  • Method: Screw Mount
  • IP Rating: IP65
  • Electrical Protections: Reverse Polarity, 200 Volts spike protection, Transient Protection
  • Beam Angle: 100 Degrees
  • Lifetime Hours: 50000 hr (70% Light Output)
  • Luminous Flux: 201 lumens
  • Certification & Compliance: CE-EMC, RoHS, UL 1598, UL1149, UL 8750, CSA C22.2#250.0, Class III, F-Rated
  • Halogen Equivalency: 25 Watts
  • Color Rendering Index (CRI): 83 (white)
  • Trim Ring Dimensions: 3.43" Diameter x 0.29" Height
  • Recessed Depth: 0.92"
  • Cutout Diameter: 2 1/2"
  • Correlated Color Temperature (CCT): 2800K
  • Dimmer Module: ILIM80120
  • Dimmer Interface: Pulse Width Modulation
    • Warning
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    View More View Less

    Dimensions 3.43" Diameter x 0.92" Depth
    Material E-Coat Aluminum Housing , Stainless Steel Trim Ring , Frosted Glass Lens
    Mounting Hardware Screw Fasteners (Included)
    Type Down Light
    Voltage 10 to 30 Volts DC
    Warranty Five Years
    Wattage 4.57 Watts
