IMTRA CORPORATION

PowerLED Downlight 10 to 30V DC Brushed Stainless Steel 2 x 3 Watts High Flux LED Square Bezel IP65

Model # 17187832 Mfg # ILIM30472
4.2 out of 5 Customer Rating
Advice & How-To
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Not sure what to buy? Let us help! Not sure what to buy? Let us help!

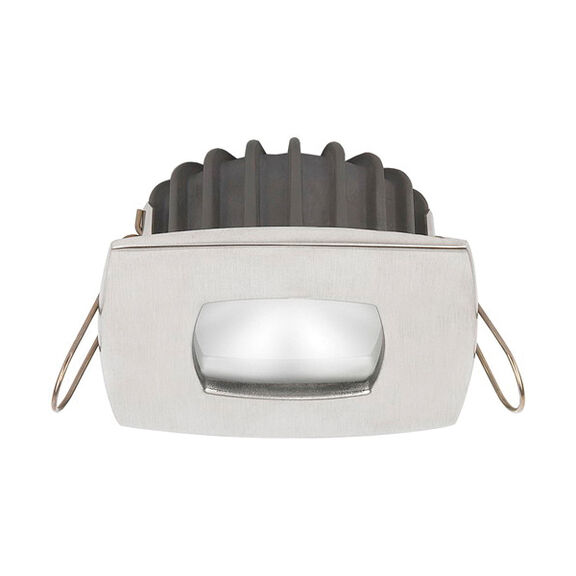

PowerLED Downlight 10 to 30V DC Brushed Stainless Steel 2 x 3 Watts High Flux LED Square Bezel IP65 image number 0
IMTRA CORPORATION
PowerLED Downlight 10 to 30V DC Brushed Stainless Steel 2 x 3 Watts High Flux LED Square Bezel IP65
Model # 17187832 Mfg # ILIM30472
4.2 out of 5 Customer Rating
Advice & How-To
Out Of Stock Item out of stock get notified when back in stock:
Thank you! We'll let you know when it's back in stock.
−
+

The Ventura powerLED recessed spot is Imtra's most popular PowerLED marine lighting spot. Its light output exceeds that of legacy 20 Watts halogen spots while consuming 80% less power. So it is easy to see why so many boat builders have made the switch to Ventura. Proprietary drive electronics & carefully designed optics result in a more blended aperture appearance (vs. halogen) resulting in light which is free of annoying artifacts or distracting hot spots. Imtra's carefully designed thermal management system results in maximum life with minimal lumens depreciation over its working life (approximately 50000 hr). And like all of Imtra PowerLED spots & fixtures, the Ventura is 100% dimmable when used with Imtra's power-saving PWM momentary digital dimmer. Ventura's ultra-thin bezel profile blends in nicely with hard or soft headliners. Several finishes available along with choice of LED colors, including dimmable bi-color models. The Ventura conveniently & firmly installs with self-adjusting stainless steel springs. Made in the USA & confidently offered with a 5 years warranty!

Features & Benefits:

  • Ultra flat stainless steel bezel
  • High lumen output
  • Solid-state circuitry
  • Minimal power consumption
  • Completely sealed LED sub-assembly
  • Integrated drive electronics (no external driver)
  • PWM dimmer interface
  • LED Color: Warm White
  • Trim Ring Material: Stainless Steel
  • Trim Ring Finish: Brushed Stainless Steel
  • Lens Material: Frosted Glass
  • Method: Spring Mount
  • IP Rating: IP65
  • Electrical Protections: Reverse Polarity, 200 Volts spike protection, Transient Protection
  • Beam Angle: 90 Degrees
  • Lifetime Hours: 50000 hr (70% Light Output)
  • Luminous Flux: 183 lumens
  • Certification & Compliance: CE-EMC, RoHS, UL 1598, UL1149, UL 8750, CSA C22.2#250.0, Class III, F-Rated
  • Halogen Equivalency: 25 Watts
  • Color Rendering Index (CRI): 83
  • Trim Ring Dimensions: 3" Diameter x 0.23" Height
  • Recessed Depth: 1.14"
  • Cutout Diameter: 2.63"
  • Correlated Color Temperature (CCT): 2800K
  • Dimmer Module: ILIM80120
  • Dimmer Interface: Pulse Width Modulation
  • Driver: Integrated
  • Dimmer Control Interface: 1P/1T NO or 1P/2T NO/NO Momentary Push Button Switch
  • Dimming Range: 10 to 100%
    • Warning
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    View More View Less

    Dimensions 3" Diameter
    Material Anodized Aluminum
    Mounting Hardware Spring (Included)
    Type Down Light
    Voltage 10 to 30 Volts DC
    Warranty Five Years
    Wattage 4.7 Watts
