IMTRA CORPORATION

PowerLED Downlight 10 to 30V DC Brushed Stainless Steel Trim Ring Blue LED IP65

Model # 17188103 Mfg # ILIM30932
5 out of 5 Customer Rating
Advice & How-To
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Not sure what to buy? Let us help! Not sure what to buy? Let us help!

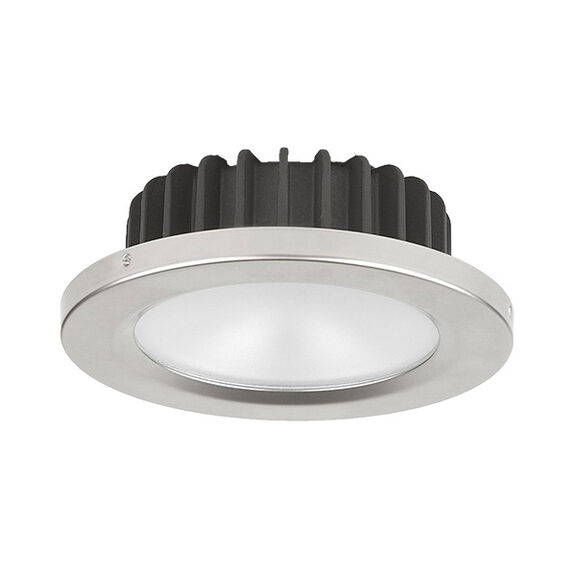

PowerLED Downlight 10 to 30V DC Brushed Stainless Steel Trim Ring Blue LED IP65 image number 0
IMTRA CORPORATION
PowerLED Downlight 10 to 30V DC Brushed Stainless Steel Trim Ring Blue LED IP65
Model # 17188103 Mfg # ILIM30932
5 out of 5 Customer Rating
Advice & How-To
Out Of Stock Item out of stock get notified when back in stock:
Thank you! We'll let you know when it's back in stock.
−
+

The 2 PowerLED recessed spot boat light incorporates the latest in high-flux LED technology with an efficient matched optical system. The result is a spotlight resembling a traditional halogen based fixture with uniformity of light across the entire lens area, enhancing aesthetic appearance & eye comfort. The housing of the 2 PowerLED is purpose-built & incorporates an efficient e-coat sealed aluminum heat sink which keeps the circuit board & LED within a temperature range that assures maximum product life. Dimming: For consistent color temperature & full dimming range, use with the PowerLED dimmer module, ILIM80120.

Features & Benefits:

  • Low profile design for areas with limited ceiling space
  • Built-in driver - no complicated wiring
  • No radiated heat
  • Low power consumption
  • Solid-state circuitry (shock/vibration proof)
  • Multi-voltage: For 12 or 24 Volts systems
  • Completely sealed LED sub-assembly
  • efficient parabolic reflector
  • Choice of LED colors
  • LED Color: Blue
  • Trim Ring Material: Stainless Steel
  • Trim Ring Finish: Brushed Stainless Steel
  • Lens Material: Frosted Glass
  • Method: Screw Mount
  • IP Rating: IP65
  • Electrical Protections: Reverse Polarity, Transient, ESD
  • Beam Angle: 88 Degrees
  • Lifetime Hours: 50000 hr (70% Light Output)
  • Luminous Flux: 85 lumens
  • Certification & Compliance: CE-EMC, FCC, RoHS, UL1598, Class III, F-Rated
  • Halogen Equivalency: 25 Watts
  • Trim Ring Dimensions: 3.43" Diameter x 0 1/4" Height
  • Recessed Depth: 0.92"
  • Cutout Diameter: 2 1/2"
  • Integrated Switch: No
  • Dimmer Module: ILIM80120
  • Dimmer Interface: Pulse Width Modulation
  • Driver: Integrated
  • Dimmer Control Interface: NO Contact (Remote Push-Button)
    • Warning
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    View More View Less

    Dimensions 3.43" Diameter x 0.92" Depth
    Material E-Coat Aluminum Housing , Stainless Steel Trim Ring , Frosted Glass Lens
    Mounting Hardware Screw Fasteners (Included)
    Type Down Light
    Voltage 10 to 30 Volts DC
    Warranty Five Years
    Wattage 4.57 Watts
