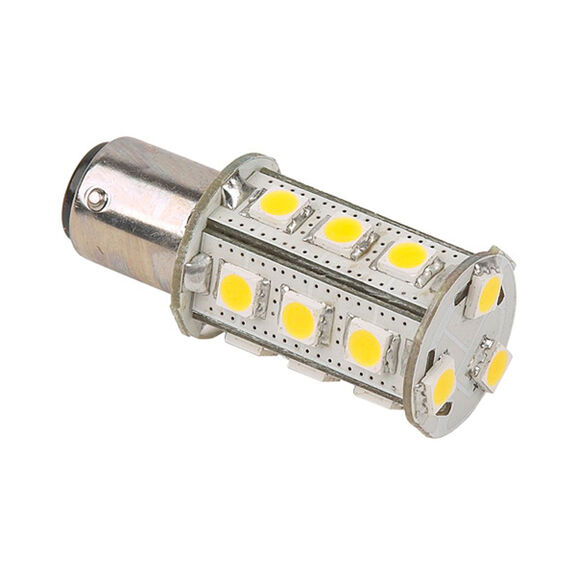

Tower Navigation Bayonet LED Bulb Cool White 10 to 30V DC 3 Watts Omni-Directional BAY15d Socket
Complete Your Purchase
This is one of the highest output LED tower cluster available for marine use. It uses 18 surface mount cool-white (SMD) LEDs arrayed in 6 planes for 360 Degrees visibility. Proprietary PWM constant-current chipset results in high performance across the entire 10 to 30V DC range. This LED bulb product is ideal for masthead (anchor light) & stern lamp applications in fixtures that use a BAY15d bulb (double contact, offset pins). Fits Aqua Signal Series 40, 41, 42 & 50, as well as Hella 2984 & Perko 200 Fixtures (clear lens fixtures only). Replaces Aqua Signal bulb #90005, Hella bulb #78290 & Perko bulb #037512V10W.
Cool White is recommended behind clear lenses because it has a higher luminous output than Warm White. Because LEDs have a narrow spectrum, it is not don't recommend using Cool White behind colored lenses, as the colors will not be true. For use behind colored (e.g., red, green, bi-color, tri-color) lenses please see one of the warm white version ILTW1157-SMW
Features & Benefits:
- High output SMD LEDs
- Exceeds COLREG 3nm visibility requirements
- Meets visibility requirements for vessels up to 20m
- Constant-current drive topology
- Over-voltage protection
- Thermally efficient design
- Current Draw: 250mA/12 Volts, 125 mA/24 Volts
- LED Emitting Color: Cool White
- LED Type/Quantity: 18 x SMD
- Beam Angle (FWHM): 120 Degrees (five directions), 360 Degrees pattern
