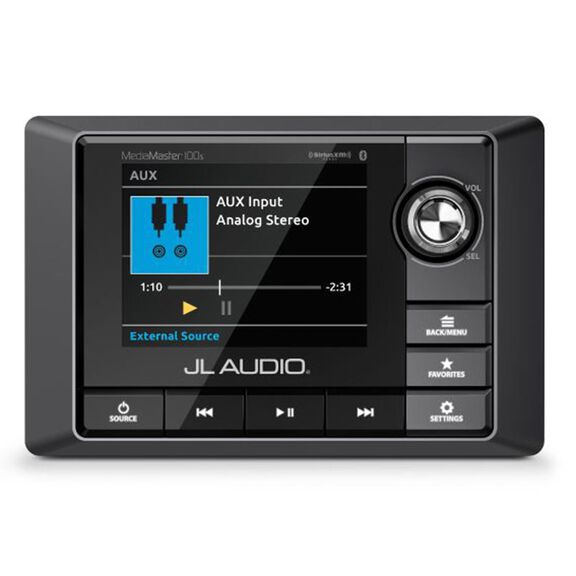

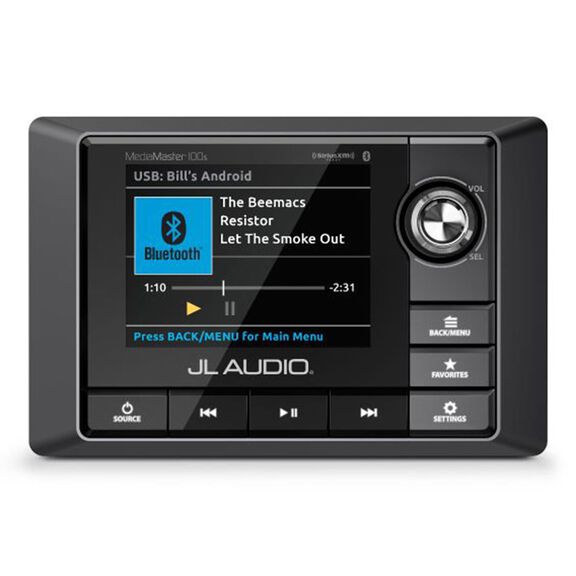

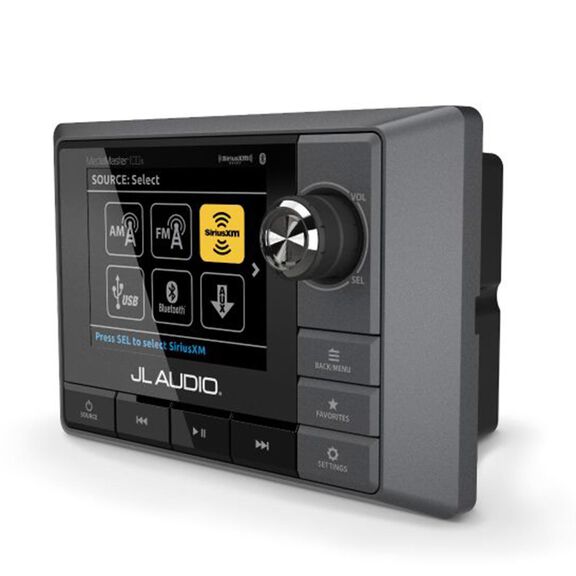

MM100s MediaMaster Audio Source Unit
With audiophile-quality circuits and eight channels of preamp outputs to deliver crystal-clear signals into four separate audio zones.
Engineered for marine and powersports applications, the MediaMaster® 100s Premium Source Unit is built to withstand anything Mother Nature can dish out. Its rugged, weatherproof chassis houses an ultra-bright, 3.5" full-color LCD display, with separate Day and Night lighting themes to keep things easy to see at all times.
An intuitive user interface with big, legible text and large backlit controls makes it easy to use, especially while in motion. Equipped with audiophile-quality circuits, eight channels of preamp outputs deliver crystal-clear signals into four separate audio zones.
Each zone is outfitted with its own set of independent features and control options, creating a versatile audio command center, configurable for a wide range of system or vessel types, from basic to multi-location, with selectable subwoofer control. Zones 1-3 include a zero-clipping audio circuit design and self-limiting tone controls to help prevent speaker system damage.
Designed for today’s modern media environment, the MM100s features a Digital AM/FM/Weather Band Tuner, Bluetooth® connectivity, separate line level AUX and USB/iPhone® inputs, and it’s SiriusXM-Ready™, too. Connect an optional MMR-20 Wired Remote (sold separately) to add remote control functionality from extended locations (up to three). With the MediaMaster® 100s, you can enjoy great sound wherever your adventures might take you.
Key Features
- RDS (Radio Data System) displays extended FM program info, where available
- SiriusXM-Ready™ (tuner, antenna and subscription sold separately)
- Store up to 18 of your favorite channels for quick access, across all tuner bands
- Bluetooth® with the aptX® codec streams top-quality audio from compatible devices, with full control of play/pause and track up/down functions
- USB 2.0 direct digital connection for an iPhone® or USB storage device, with album cover art support and folder browsing capabilities
- Conveniently charges phone or media player with 1.0 amp USB output
- Analog auxiliary input accepts audio signal from a wide range of audio sources
- Connect up to three MMR-20 Wired Remote Controllers (sold separately) to add remote control functionality from extended locations
- NMEA 2000® Compatible: Interfaces with vessels equipped with a multi-function display and NMEA 2000® standard network. Note: Requires MM100s operating the latest software, use of MMC-DN2K-1 or MMC-DN2K-6 Deutsch to NMEA 2000® adaptor cable (sold separately), MFD (Multifunction Display) with compatible NMEA 2000® Entertainment Protocol, and any required NMEA 2000® components applicable to your specific NMEA 2000® network (not included).
- Protective Sun Cover included
Specifications
- Functions: NMEA 2000 compliant, SiriusXM-Ready™, Bluetooth Music Streaming, USB, MP3, WMA, WAV, Lightning connector iPod/iPhone
- Satellite Radio Ready: Yes
- iPod/iPhone Compatible: Yes
- CD Ready: No
- Display Type: 3.5"diag. 320 x 240 color TFT LCD
- Face Design: Fixed
- Remote Control: Sold separately
- Digital Tuner: AM/FM with NOAA weather band capability
- Input Operating Voltage: 10-16V DC
- Standby Current Amperage: 120 mA
- Operating Current Amperage: 1.5 A
- Preamp Outputs: 8 preamp outputs, , four audio zones, amplifier sold separately
- Audio Output: Dedicated amplifier required (sold separately)
- Dimensions: 5 15/16"W x 3 7/8"H x 3 3/16"D
- Cutout Size: 4 11/16"W x 3 1/4"H x 1 25/32"D
- Waterproof Rating: Water resistant IP66
- Warranty: Two years
Audio Outputs
Main Audio Zone
- Full-range audio output
- Bass, Midrange, Treble and Balance controls
- 4V RMS Output
- Zero-clipping audio circuit with self-limiting tone controls
Audio Zone 2
- Full-range audio output
- Independent Bass, Mid, Treble, Balance controls
- Absolute or relative volume control
- 4V RMS Output
- Zero-clipping audio circuit with self-limiting tone controls
Audio Zone 3
- Assignable as a subwoofer output or as a full-range audio output
- Independent Bass, Mid, Treble, Balance controls in full-range mode
- Absolute or relative volume control
- 4V RMS Output
- Zero-clipping audio circuit with self-limiting tone controls
Audio Zone 4
- Fixed level zone
- 1V, 2V or 4V RMS
