This product is not longer available, we recommend a similar product instead:

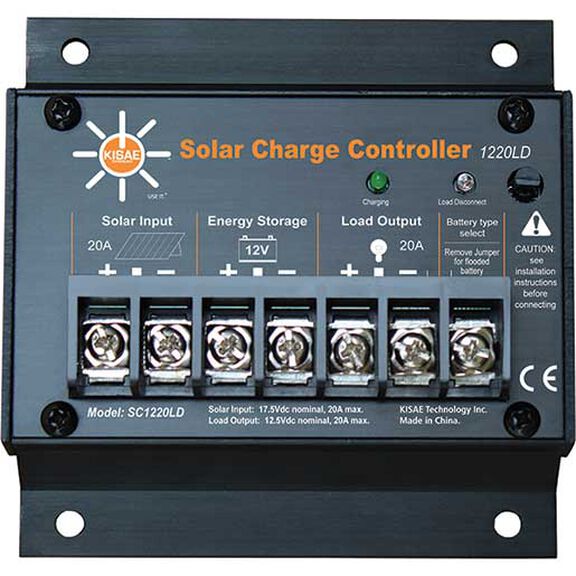

SC1220LD Solar Charge Controller
Model #
14160006
Mfg #
SC1220LD
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Get 5X West Advantage Points on all purchases for a limited time! Not a rewards member? JOIN NOW
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
The SC1220LD 20A Charge Controller ensures that you do not overcharge or discharge your battery when charging it from your solar panel. Regulated output prevents batteries from overcharging. Load Disconnect (LD) protacts batteries from being over-discharged.
- 20A Amp Capacity
- For 12 Volt solar panels and batteries systems
- Selectable battery type
- Designed for solar panels <340W
- Load Disconnect version to protect batteries from being over-discharged
- Easy to read indicator
- Features temperature compensation and reverse polarity protection
Specifications
- Battery Voltage: 12V DC Max.
- PV panel open-circuit voltage: 26V DC
- Max. Charge Current: 20A
- Max. Load Current: 20A, 40A for one minute
- Operational Draw (no load and no PV): <10mA
- Regulated Battery Charging Voltage: Flooded-14.6V DC, Sealed-14.2V DC
- Voltage Across Terminal (PV to battery): <0.15V DC
- Voltage Across Terminal (battery to load): <0.10V DC
- PV Reverse Polarity Protection: Yes
- Battery Overcharge Protection: Flooded-14.6V DC, Sealed-14.2V
- DC Load Discharge Protection: <11.5V DC
- Battery Charger Stages: Two-teps, Bulk, Float
- Recommended Wire Size: #10 AWG
- Operating Temp: -40C to 60C
This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to
www.P65Warnings.ca.gov
Amperage
20 amps
Connection Interface
Junction Box
Dimensions
4" Width x 1 5/8" Depth x 7" Length
Type
Controller
Voltage
12 Volts DC
Warranty
One Year
Wattage
340 Watts
