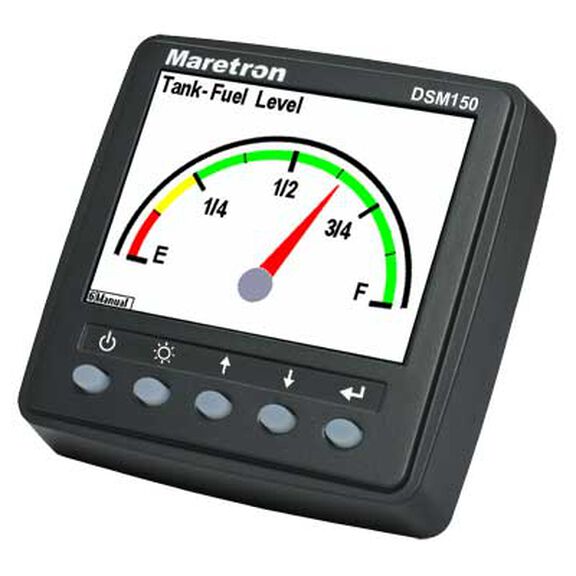

DSM150 3.5in Color Touchscreen
DSM150 is a high-resolution sunlight viewable color display that interprets and displays NMEA 2000® instrument, navigation, and vessel monitoring data. The DSM150 is a user friendly dedicated marine display with custom screen configurations and an easy-to-use five-key illuminated keypad. In addition to the monitoring and display capabilities, the DSM150 features an alert/ alarm package and electrical switching capability.
Unlike traditional single-display units, DSM150 users can choose numeric, gauge, bar or graph formats in single or multiple displays, with cycling options possible for a wide range of favorite data. These multiple display options conserve mounting space and reduce overall system cost.
The DSM150 will directly connect with any NMEA 2000® network and with the exception of AIS data will display any or all information captured throughout the vessel. Various audio and visual alarms are also programmable. The DSM150 displays a multitude of information including AC power, anchor status, battery, depth, electrical distribution, engine, environment, fuel management, GPS, heading, navigation, pressure/vacuum, rudder, speed, status indicators, tanks, temperature, time, transmission, water makers, weather, wind and more.
The DSM150 includes a comprehensive, flexible alert capability. Configure audio and visual alerts on virtually any data that the DSM150 is capable of monitoring. Available alert types include:
- High Alert
- Low Alert
- Inside Radius Alert
- Data Unavailable Alert
- On Alert
- Off Alert
- Tripped Alert
- Course Alert
- GPS Quality Alert
- Outside Radius Alert
- Inside Radius Alert
- Direction Alert
- Timer Alert
Displays:
- AC Power
- Battery
- Depth
- Engine
- Environment
- Fuel Management
- GPS
- Heading
- Navigation
- Rudder
- Speed
- Tanks
- Time
- Transmission
- Weather
- Wind
