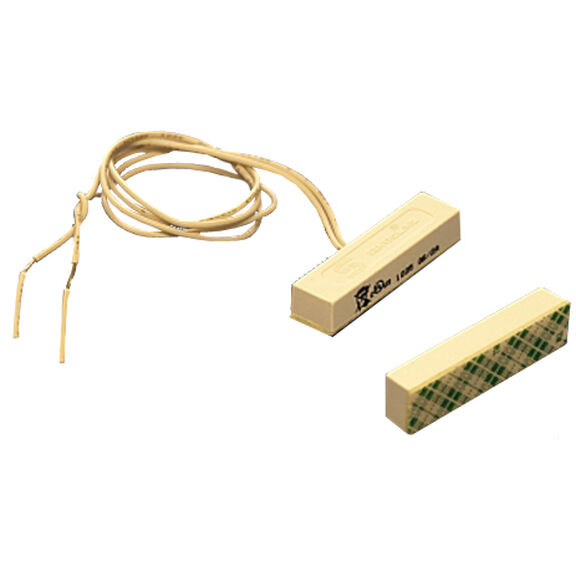

MS-1035 Magnetic Switch Rectangular (Indoor)
Model #
11115011
Mfg #
MS-1035
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
MS-1035 Magnetic Switch Rectangular (Indoor)
Model #
11115011
Mfg #
MS-1035
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
Applications
- Use to protect doors and windows where drilling holes is
undesirable, such as thin-frame windows or on sliding glass
doors.
Architectural and Engineering Specifications
- The 1035 Series Surface Mount Self-Adhesive magnetic contact is 1 1/2" L x 3/8" W x 1/2" H. The reed switch and magnet are housed separately. Patented 3M® double-sided tape is provided to secure the switch and magnet to the surface. The tape can be repositioned during the first 5 minutes of use.
Specifications:
Form A (1035, 1035W)
- Voltage: 100 V AC/DC max.
- Current: 0.5 A max.
- Power: 7.5 W max.
Form B (1036, 1036W)
- Voltage: 30 V AC/DC max.
- Current: 0.25 A max.
- Power: 3.0 W max.
Form C (1037, 1037W)
- Voltage: 30 V AC/DC max.
- Current: 0.25 A max.
- Power: 3.0 W max
