This product is not longer available, we recommend a similar product instead:

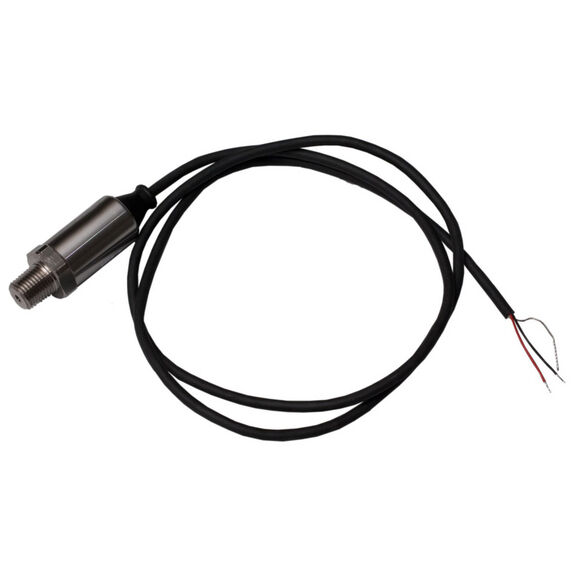

Pressure Transducer, 0 to 100 PSI
Model #
17250168
Mfg #
PT-0-100PSI-01
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Get 5X West Advantage Points on all purchases for a limited time! Not a rewards member? JOIN NOW
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
- Pressure transducers are not approved for use with gasoline
- For use with FPM100 fluid pressure monitor
- Pressure Range: 0 to 100PSI (6.89 Bar)
- Accuracy: +/-0.5% Full Scale
- Hole Diameter: 4mm
- Length: 2 5/8"
- Diameter: 22.22mm
- Thread Size: 1/4-18 NPT
- Compatible Fluids/Gases: Refrigerant, Motor Oil, Diesel, Hydraulic Fluid, Brake Fluid, Water, Waste Water, Hydrogen, Nitrogen, Air
- Temperature Range: -40 to 105 Deg C
- Pressure: 2.4 x Full Scale Proof & Burst
- Reverse Voltage Protection: +/-16 Volts Over 5 min
- Cable Length: 3' (0.91m)
- Pressure/Temperature Cycles: 0 to FS at 8Hz; & -40 to 105 Deg C For >1.8 x 106 Cycles
- Thermal Shock: 105 to -40 Deg C, 0.5 hr Soaks at Temp. (2s Transfer) For 300 Cycles
- Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes For 144 hr
- EMC Compatibility: 10 Volts/meter per EN 61000-4-3
- Humidity: 85 Deg C & 90 to 95% R. H. For 250 hr
- Weight: 85gm
This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information, go to
www.P65Warnings.ca.gov
Type
Adapters
Material
Stainless Steel
Type
Adapters
