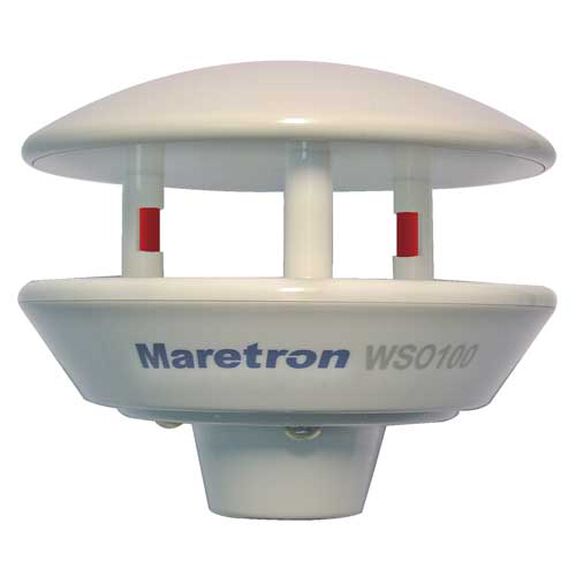

Ultrasonic Wind and Weather Station

Ultrasonic wind, temperature, relative humidity and pressure sensor has no moving parts to wear out.

Maretron's outdoor weather station measures wind speed and direction, air temperature, barometric pressure, and relative humidity. The wind measurement is performed using ultrasonic sensors, which means there are no moving parts to wear out or to get caught in the rigging.

The WSO100 accurately measures wind speed and direction even when tilted, making it ideally suited for heeled sailboats or powerboats operating in pitching and rolling seaways.

When used with Maretron displays (DSM200/DSM250/ N2KView®), you can view apparent wind speed and direction, humidity, air temperature, barometric pressure (with graphs to see trends), wind chill factor, heat index, and dew point. If you add speed through water (DST100), GPS (GPS100) and compass (SSC200), you can view true vessel referenced wind speed and direction as well as ground referenced speed and direction.

Key Features

The WSO100 provides these functions:

• Apparent Wind Speed
• Apparent Wind Direction
• Atmospheric Pressure
• Air Temperature
• Relative Humidity

Specifications

• Wind Range: 0.5 to 99.5 knots (1 to 185 kph)
• Wind Speed Resolution: 0.1 knot (0.19 kph)
• Wind Speed Accuracy: ± 5% or 1 knot (1.9 kph) Tilt 0° (operates to 30° tilt)
• Wind Direction Accuracy: ± 5° Tilt 0° (operates to 30° tilt)
• Temperature Range: -25° to 55° C
• Temperature Resolution: 0.1°F (0.06°C)
• Temperature Accuracy: ±1.8°F (1°C)
• Relative Humidity Range: 0-99% RH
• Relative Humidity Resolution: 1% RH
• Relative Humidity Accuracy: ± 4%-5% RH
• Barometric Pressure Range: 26 to 32” Hg (880 to 1080 mb)
• Barometric Pressure Resolution: 0.03” Hg (1 mb)
• Barometric Pressure Accuracy: ±0.1” Hg (±3.4 mb)
• Operating Voltage: 9 to 16V DC
• Power Consumption: <150mA Average Current Drain
• Load Equivalence Number (LEN): 3 NMEA 2000® Spec. (1LEN = 50 mA)
• Reverse Battery Protection: Yes Indefinitely
• Load Dump Protection: Yes Energy Rated per SAE J1113
• Dimensions: 4 1/4” Dia. x 3 7/16”H including Mounting Bracket
• Weight: 10 oz. (283g) Including Mounting Bracket
• Mounting Pole: Fits 1”-14 TPI Standard Marine Mount

What's in the Box

• WSO100 Ultrasonic Wind/Weather Station
• Pole Mount Base
• Three Mounting Screws and Lock Washers
• WSO100 User’s Manual
• Warranty Registration Card
