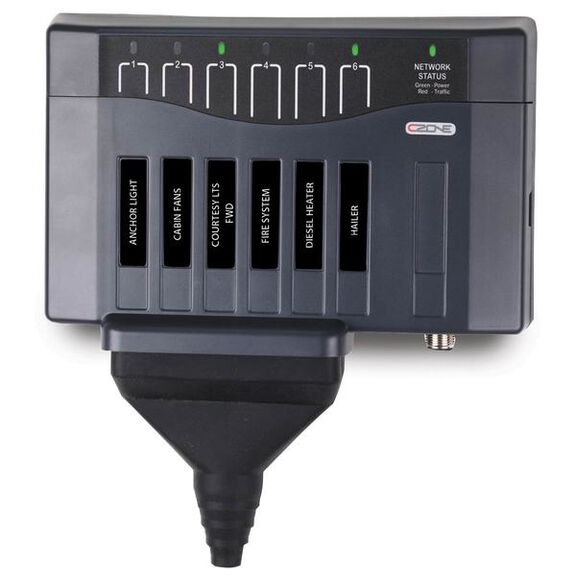

CZone™ Output Interface with Connector and Boot

The CZone™ Output Interface provides an intelligent replacement for traditional circuit breaker and fuse panels.

Mastervolt's CZone Output Interface (OI) has six (6) high-power, robust output channels which provide the power supply, control and fusing for a circuit; these channels also integrate many other built-in features, such as timers and dimmers. A protective flexible boot offers protection to the connections from harsh environment conditions.

Connection Details

A large six-way plug allows connections to single cables up to 6 AWG, or multiple smaller conductors. A simple blade screwdriver can be used for CZone terminations, eliminating the need for specialized crimp terminals and expensive crimp tools.

Key Features

• 4 levels of backup fusing including manual override (as required by ABYC)
• Multiple channels can be bridged together to offer higher current switching
• Small, non-metallic, easy to install case
• 6 x 20 amps circuits
• Programmable software ‘fuse’ sizes
• High and low alarm levels can be set for all inputs

Specifications

• Waterproof Rating: IPX5 water ingress
• Dimensions: 5"H x 7 7/8"W x 1 13/16"D
• Power Consumption: 12V: 85mA (standby, 60mA)

Owner's Manual
