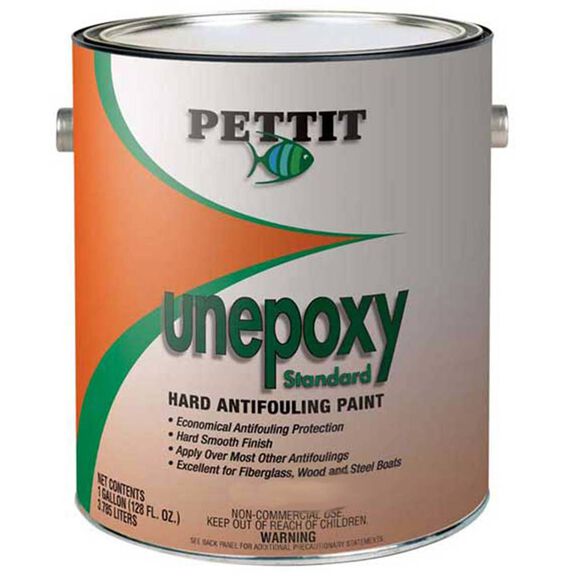

Unepoxy Antifouling Paint, Gallon
Season-long antifouling that withstands trailered boats and beaching
Effective in fresh- or saltwater, this hard modified epoxy paint provides affordable antifouling protection for all types of vessels. Compatability with all properly prepared hard bottom paints permits overcoating without fear of lifting.
Key Features
- Hard and durable finish
- Finish is able to withstand beaching and trailering
- Apply over most other antifouling
- High copper content
Physical Data
- Type: Modified Epoxy/Rosin
- Finish: Flat
- Available colors: Red, Blue, Black, Green
- Components: 1
- Curing mechanism: Solvent Release
- Solids by weight (Theoretical): 77 +/- 3%
- Solids by Volume (Theoretical): 55 +/- 4%
- Coverage: 440sq.ft./gal.
- VOC: 440 g/l max.
- Active ingredients: 33.26% Cuprous oxide
- Flash point: 114°F (SETA)
Application
- Application Method: Brush, roller, airless, or conventional spray
- Number of coats recommended: 2
- Dry Film Thickness: 2 mils
- Wet Film Thickness: 3.6 mils
- Applicator: High-quality short nap roller (maximum 3/8” nap)
- Application temperature: Min. /Max. Range: 40° F. Min/90°F. Max
- Thinner: Special Thinner 120 model 249961; Spray: 121 Spraying Thinner, model 249995
Drying times (Hours)
| Drying | @40°F | @70°F | @90°F |
|---|---|---|---|
| To recoat | 12 hr. | 6 hr. | 3 hr. |
| To launch | 24 hr. | 16 hr. | 8 hr. |
*The above dry times are minimums. May be recorded after the minimum time shown. There is no maximum dry time before launching.
Get the right amount of paint:
| Boat Type | Bottom Paint |
|---|---|
| 10' Dinghy | 1 qt. |
| 14' Outboard | 1-2 qt. |
| 18' Runabout | 2 qt. |
| 20' Sailboat | 3 qt. |
| 24' Runabout | 3-4 qt. |
| 30' Sailboat | 1.5 gal. |
| 32' Cruiser | 1.5-2 gal. |
| 36' Auxiliary | 2 gal. |
| 40' Cruiser | 2.5 gal. |
| 45' Sailboat | 3-3.5 gal |
| 50' Sportfisher | 4+ gal. |
Another way to determine bottom paint quantity is to estimate the approximate surface area of the hull below the waterline, using the following formula:
Length x Beam x .75 = Approximate underwater surface area in square feet.
Each paint has a “theoretical coverage” area, but most paints require at least two coats, so you can expect actual coverage to be no greater than half of the theoretical value.
More Information
For detailed application instructions and to view available colors, see the Unepoxy data sheet.
NOTE: Manufacturer data sheets are subject to revision. Linked data sheets are believed to be accurate at the time of publication.
