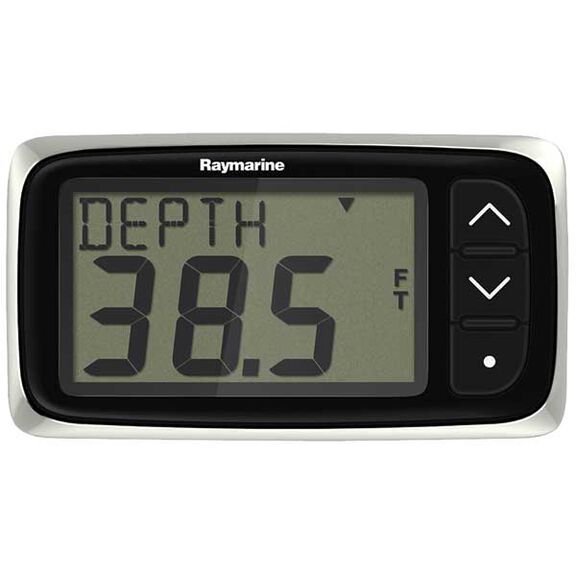

i40 Depth Instrument with Thru-hull Transducer
Model #
14155865
Mfg #
E70142
$340.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
i40 Depth Instrument with Thru-hull Transducer
Model #
14155865
Mfg #
E70142
$340.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Big displays for smaller powerboats, sailboats and RIBs, these compact yet powerful SeaTalk instrument displays offer full integration with Raymarine autopilots and navigation equipment. With extra large digits (1 1/8"H max) and razor sharp LCDs, easy-to-use i40 instrument displays have outstanding visibility in all lighting conditions. Red backlighting for improved nighttime visibility. Low power consumption for increased battery life. SeaTalk interface (SeaTalkng when used with SeaTalk to SeaTalkng converter). Built-in transducer interface. Same footprint and installation as older Raymarine ST40 instruments.
- Display Type: Segmented monochrome LCD
- Digit Size: 1 1/8"H (28mm)
- Width: 5 1/16"
- Height: 2 7/8"
- Depth: 11/16"
- Instrument Functions: Depth (0-400'), shallow, deep alarm, anchor alarms, minimum depth
- Included Accessories: Sun Cover, thru-hull transducer, mounting gasket, clamping bracket, mounting stud/thumb nut, SeaTalk power cable
- Depth Transducer: Included
- Data Interface: SeaTalk
- Voltage: 12V (10-16V DC)
- Draw: 25-35mA Typ.; 100mA max.
- Waterproof Rating: IPX6
- Warranty: Three years (with product registration)
Type
Depth
Display Color
Monochrome
Display Type
Segmented LCD
Features
Waterproof
Frequency
200 kHz
Maximum Depth
400 Feet
Mount Type
In Dash
Transducer Included
Thru-Hull
Type
Depth
Warranty
Three Years (with Product Registration)
