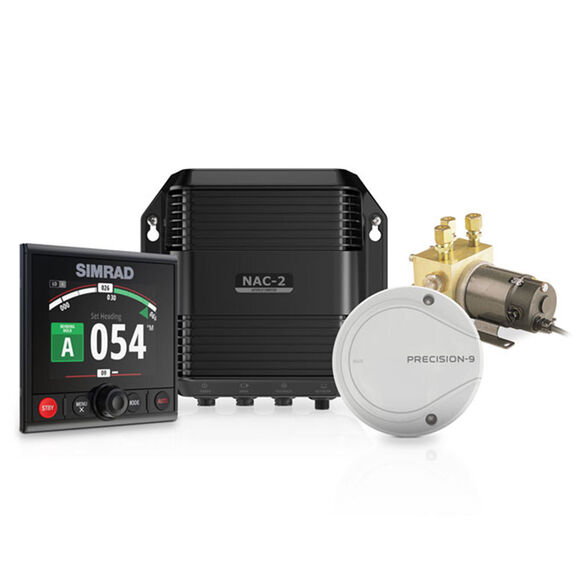

This complete autopilot pack includes everything you need to upgrade your outboard or sterndrive up to 35' with a Simrad Continuum autopilot system.

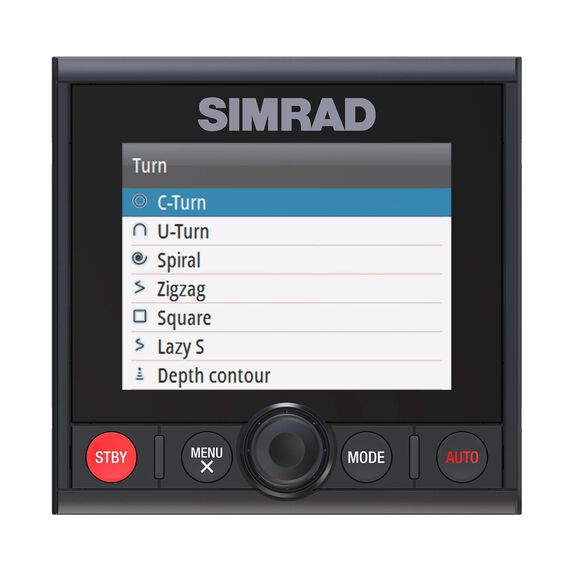

Set your heading and access advanced pilot modes with the intuitive AP44 Autopilot Controller, featuring a 4.1" diagonal full color display and rotary control dial.

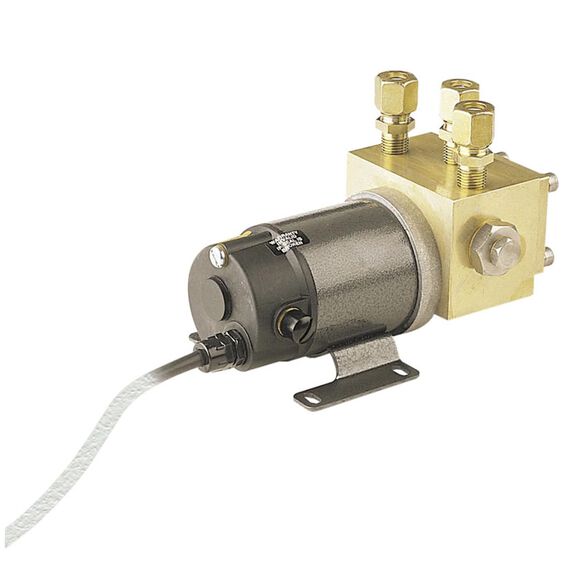

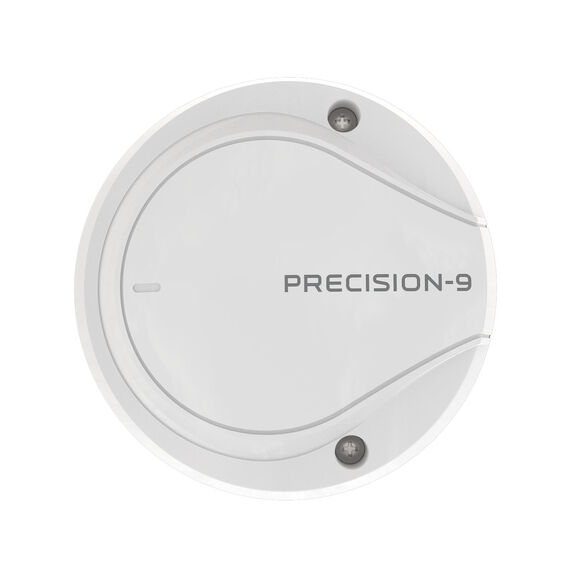

Designed for hydraulic-steered outboard and sterndrive vessels up to 35' in length, this medium-capacity pack also includes an RPU-80 hydraulic steering pump, NAC-2 autopilot computer, Precision-9 solid-state compass, plus all necessary NMEA 2000 cables and connectors.

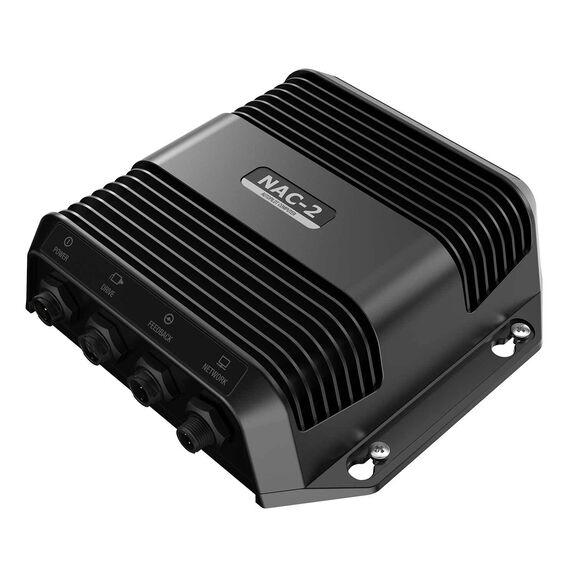

The NAC Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units.

The NAC-2 was designed for boats up to 35' in length and is suitable for low-current pumps, mechanical drive units, or solenoid valves (eight amps continuous/16 amps peak).

Key Features

  • Reliable autopilot performance based on Simrad Continuum steering technology
  • Output of 8 amps continuous, 16 amps peak
  • Clutch output (3 amps maximum)
  • Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
  • Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
  • Supports Simrad RF25 only, not RF300
  • Plug-and-play connectors for easy installation
  • NMEA 2000 connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays no NMEA 0183

AutoPilot Guide

Best Use Hydraulic Steering , Outboard/Outdrive/Sterndrive
Display Color Color
Display Type LCD
Drive Type Sold Separately
Maximum Boat Displacement Less than 30000 Pounds Depending on Drive Type , Suitable for Vessels Above 10 Meters/35 Feet in Length
Type Corepack (no rudder Feedback)
Warranty Two Years IPX5 Waterproofing
