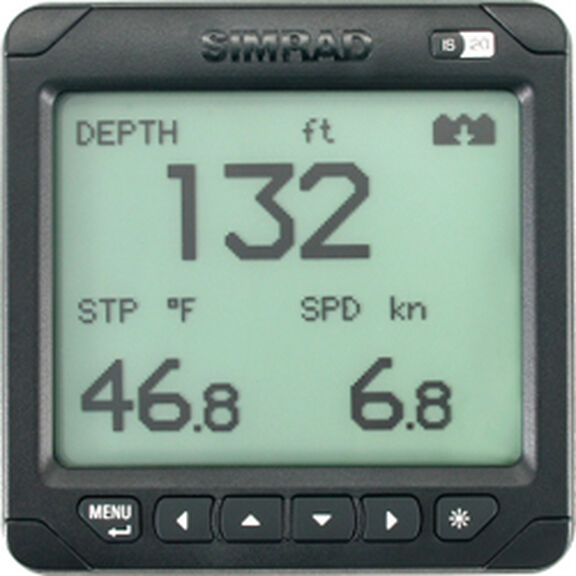

Simrad IS20 Combi Display

The IS20 multi-function instrument series features Simrad’s revolutionary SimNet data bus and active sensor technology. High-contrast LCD displays and large control buttons ensure simple operation in all conditions. Precision sensor technology provides raw data to advanced software at the instrument head. IS20 instruments are easy to install. The unique Simrad Intelligent Marine Network—SimNet—features plug and play operation and slim line connectors for easy cable routing, so you’ll be up and running in very little time. SimNet lets you ‘daisy chain’ the IS20 instrument and sensor in any order, reducing installation time compared to traditional instrument systems.

The Simrad IS20 Combi System include the all-in-one DST800 active SimNet transducer (sold separately), making it ideal as a stand-alone Depth, Speed, Temp display for sail- or powerboats, or as part of a larger integrated Simrad IS20 mulitfunction marine instrument system. Four pre-configured data pages provide a combination of easy to read Depth, Temperature, Speed and Trip Log data.

• Display Type: Dot matrix LCD
• Screen Resolution: 130 x 104
• Lighting: 10-level backlighting (white or red)
• Dimensions: 4.5"W x 4.5"H x .83"D (3.46" dia. cutout x .66" behind panel depth)
• Draw: 0.11A
• NMEA Interface: SimNet, NMEA 2000, NMEA 0183
• Waterproof: Rated IP56 Splash resistant
• Warranty: Two years
