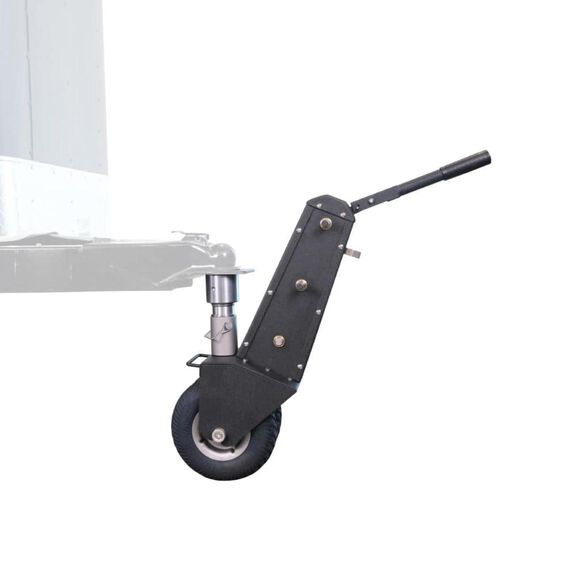

The Trailer Valet XL makes it easy to park or move your trailer of up to 10,000 lbs (4,500 kg) in tight spaces. Take corners and adjust your trailer position by steering as you move.
The XL connects to a standard trailer frame via the coupler (or optional bracket) and can be operated manually with the included hand crank as a trailer hand dolly, in low or high gear. For added power, replace the hand crank with a standard 20-24V cordless drill to power your mover with greater ease.
Each unit comes with never-flat solid rubber tires and an auto-brake function, allowing you precise control over your trailer at all times. With its compact design and the power to haul larger trailers, the XL is essential for anyone who wants to lift, maneuver, and hitch their trailer without pulling or backing up the truck.
Please note that using the XL Mount Bracket reduces the unit’s incline rating and overall weight capacity (by 2,000 lbs) due to its position on the trailer frame. (available 2 5/16 inch ball size converter sold separately). The XL can push a trailer up a 5% (2.8 degree) grade (which reduces capacity); never pull your unit up any incline.
Key Features:
- Maneuver larger trailers precisely, without the need for a vehicle
- No hand-cranking necessary: mover can be powered with any 20-24V non-impact drill
- Saves time and manual labor when hitching up the trailer
- Up to 10,000 lbs towing capacity when trailer is on a hard level surface, properly loaded, and attached using the ball and base (up to 8,000 lbs towing when using the optional XL bracket TVXLMB)
- Ideal for 5,000-10,000 lbs trailers with evenly distributed weight
- Minimum tongue weight of 500 lbs to Maximum tongue weight: 1,000 lbs
- High and low drive gear system for more precise movement
- Rugged steel construction and zinc-nickel plating for durability
- Wrinkle Black powder coating provides 300 hours of corrosion resistance
- Integrated braking system for your safety
- Never Flat solid rubber tires
- 2 Inch Ball included
- Recommended for use on a flat, concrete-like surface and a minimum 500 lbs tongue weight to a maximum 1000 lbs tongue weight. Product performance may decrease on inclines, loose surfaces, and with unevenly distributed trailer weight. For an evaluation, contact the manufacturer at 844-846-9344.
- The XL can push a trailer up a 5% (2.8 Degree) grade (will lower capacity); never pull your unit up any kind of incline.
- For Proper care of your Mover, clean the unit after each 1-3 uses for optimal maintenance. Marine grease can be applied to the chain and gear, or you can use the Trailer Valet Maintenance kit that has all you need (TVXLMK) to maintain your product.
Specifications:
- Hauling Capacity: 10000
- Static Tongue Weight lbs: 1000
- Tongue Weight Optimum Range: 500 - 1000
- Optimum Grade: The Mover can push or pull a trailer on a flat, even surface. Never pull your unit up or down any kind of incline.
- Wheel Size: 9 inches
- Mounting Type: Ball
- Wheel Type: Solid Rubber
- Item Height Inches: 29
- Item Width Inches: 11
- Item Depth Inches: 11
- Item Net Weight lbs: 56
- Warranty: 1 Year Manufacturer's Limited Warranty
- Includes: XL Unit, XL Hand Crank, Drill Attachment, Spanner Wrench, Ball Base, 2-inch hitch ball
