Single LPG Locker for 10lb. Aluminum or 11lb. Tall Steel Cylinder
Model #
183543
Mfg #
1501-0010
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Get 5X West Advantage Points on all purchases for a limited time! Not a rewards member? JOIN NOW

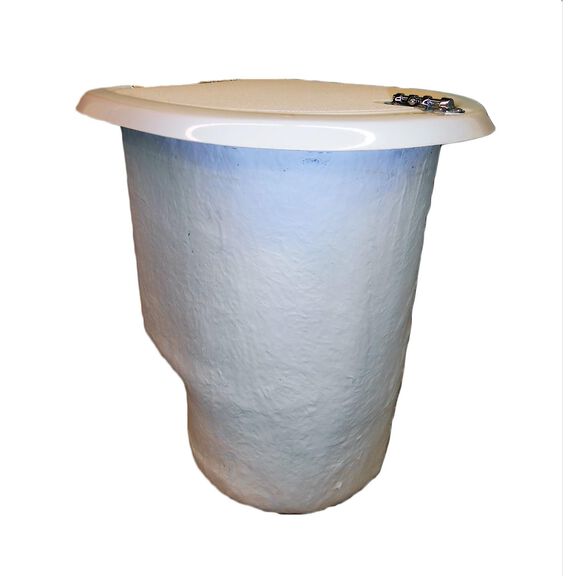

Single LPG Locker for 10lb. Aluminum or 11lb. Tall Steel Cylinder
Model #
183543
Mfg #
1501-0010
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
Complete installation for a single tank; order aluminum or steel tank separately.
High-quality fiberglass enclosures with white gelcoat finish built to ABYC specifications. Fully assembled with leak-tested ABYC regulator with gauge, 12V DC low pressure brass solenoid, gas control panel, straight-through fittings for solenoid wiring and L.P. gas supply hose and a thru-hull fitting for bottom vent.
Also fitted with stainless steel hinges, chromed-brass, quick-release latches, rubber gasket and cylinder securing device. Tanks sold separately.
- Lockers have flat head 316 stainless steel screws with nylon locking nuts
- Lid gasket is a strong edged trim seal with improved airtight capabilities that increases service life of the seal)
- Improved thickness of the fiberglass body and lid means increased strength and stiffness
Specifications
- Capacity: One 10 lb. aluminum or 11 lb steel propane tank (Model 196092 or 196043, sold separately)
- Material: Fiberglass Vent
- Dimensions: 20"H x 15 3/4"W x 17 1/4"D
- Vent Fittings: Yes
- Wire Fittings: Yes
- LP Hose Fitting: Yes
- Tank Securing Device: Quick-release latch
- Latch Lid Hardware: Stainless steel hinges with chrome-plated brass barrel bolt
- Regulator Included: Yes
- Meets ABYC Standards: Yes (*See note below)
- Warranty: One year
What's Included
- Mounted marine LPG regulator
- Gauge
- Pigtail and brass solenoid
- Gas control panel (Not mounted)
- White gelcoated fiberglass enclosure with stainless steel and chrome-plated hardware
- Includes stainless steel tie downs, straight thru and thru-hull fittings
*Note: Per ABYC, lockers must be installed on or recessed into the boat exterior (not in a lazarette or other enclosed space). The Gasketed top must open to the sky and latch tightly closed. It must be vented at the bottom (we recommend. 5/8" or 3/4" thru hull fittings and hose); downward and outboard (with no pockets): to a point above the water line and at least two feet from a hull opening to the boat interior and from an engine exhaust outlet. All holes for fuel hose(s), wiring, etc. must be sealed.
Dimensions
20" x 15 3/4" x 17 1/4"
ISO Approved
ABYC
Material
Fiberglass
Securing System
Quick Release
