Do-it-Yourself: Climbing Your Sailboat’s Rig
A One-person Alternative to the Typical Bosun’s Chair
The ATN Mastclimber is a marinized version of a common rock-climbing device that allows one person to safely climb a sailboat’s mast. It’s standard gear for professional rigging techs, like Mark Chandler, West Marine Rigging’s OEM Rigging Manager and Grand Prix Specialist. In this article, Mark explains how to use this unique product.

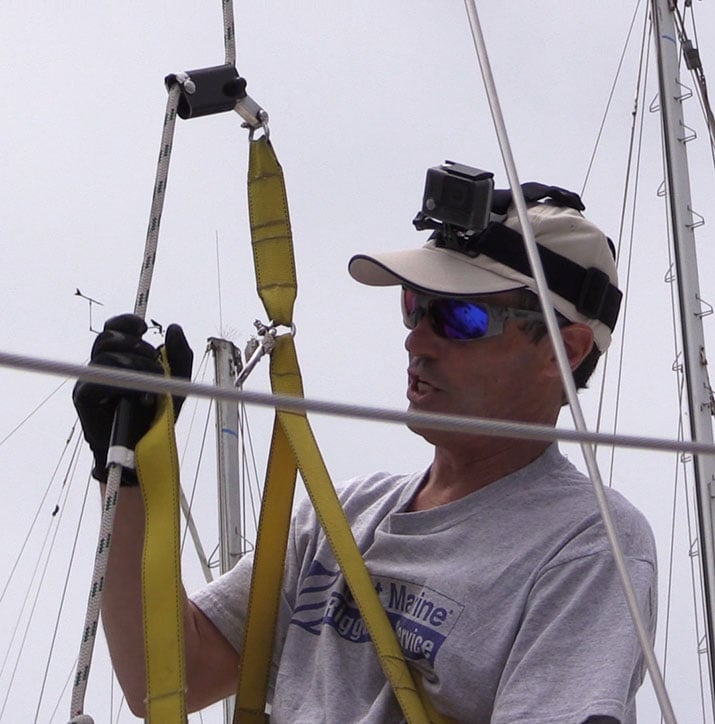

The Mastclimber employs two one-way jammers, allowing you to “inch-worm” your way up the mast. You alternate between pushing on its leg straps and sitting on the integrated bosun’s chair.
Mastclimber allows a lone sailor to work on your rig by yourself. It’s a little slower than a bosun’s chair or a block and tackle system, the two other most common mast climbing methods.
The other downside is that a Mastclimber is more physically demanding for the climber, although it relies on your large leg muscles and doesn’t require lots of upper body strength. A safety feature is that if you suffered an accident while aloft in the rig and became incapacitated, a support person on the boat below could ease the halyards and lower you to the deck.
Always Use Two Halyards

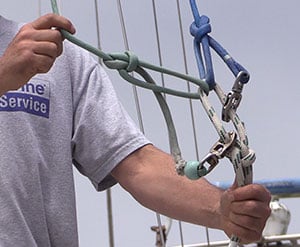

When Mark works on a Customer’s boat, he brings his own hoisting rope, low-stretch T900 Technora-Dyneema line, and hooks it to two halyards, so he can climb all the way to the top of the mast. Using two halyards instead of just one provides a redundant safety backup. He always ties bowline knots, never trusting shackles or splices (even his own).
If our rigging pro has any doubts about one of the two halyards, he brings his own halyard and temporarily installs it, swapping out the suspect line.
Tie your Halyard to the Winch

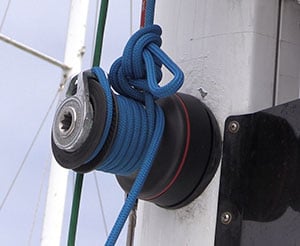

When the halyards are hoisted to the masthead, Mark ties them around the winches as shown at right. If some clueless person should walk up to the boat and decide to remove the halyard from the winch, this method, used for both halyards, would hopefully prevent a catastrophe.
Tying Off the Bottom
Standard practice is to tie off the bottom of the hoisting line, which allows a more controlled climb where you’re not wobbling all over the place. This helps the one-way jammers work their best. The downside is that you’re not as free to move out to the ends of spreaders. However, you can solve this problem with a helper below who can loosen the bottom of the line when required, and tighten it back again after you’re finished inspecting spreader tips and want to move up or down.
Bounce Testing the System
Before you go up, aggressively bounce-test your setup, as shown in the photo. Be careful to keep your weight centered over your feet, so if the system lets go, you won’t fall hard on your rear end. This shock loading will ensure your safety, and also take some of the stretch out of the halyards. The time to break any components, like halyards, bolts holding a winch, or the axle of a sheave at the masthead, is right now!
Now You Are Ready to Climb
The Mastclimber is easier to operate than it is to explain! Going up involves straightening your legs and standing up in the leg straps, sliding up the one-way jammer of the bosun’s chair (the upper one), then sitting onto the bosun’s chair, which allows you to slide up the one-way jammer of the leg straps (the lower one), then standing up again in the leg straps. You “inch worm” your way up the rope. To descend the mast, you just reverse the procedure.
When using this device, you hold yourself away from the mast using your shoes. It helps to wear a pair of shoes with grippy soles that won’t mar the surface of the mast. Mark also wears a pair of Boss Tech™ Gloves. Rigging components way up the mast and beyond the reach of any water hose tend to be very dirty.
Safety Concerns
If you have helpers on deck, they should not stand under where you’re working. That way, you won’t accidentally drop a tool on someone’s head. You should also only climb your rig with the boat in the water, never when it is hauled out on jack stands.
You can ascend with the boat offshore, as solo racers in the Vendee Globe race have sometimes needed to do. Mark has climbed rigs as tall as a 110’ maxi-boat rig, but in ocean races he goes up using a rock climbing harness. With a big racing crew onboard, climbing the rig is usually a quick operation. The team has a limited task to perform, and gets him up and back in a hurry.
Pros like Mark Chandler at West Marine Rigging Service are ready with rigging solutions for your traditional sailboat, offshore cruiser, club racer, high-tech dinghy or Grand Prix raceboat.
