Automatic Bailers
Model #
145295
Mfg #
RA554132
$147.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Select a Product:
Super Medium Automatic Bailer
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

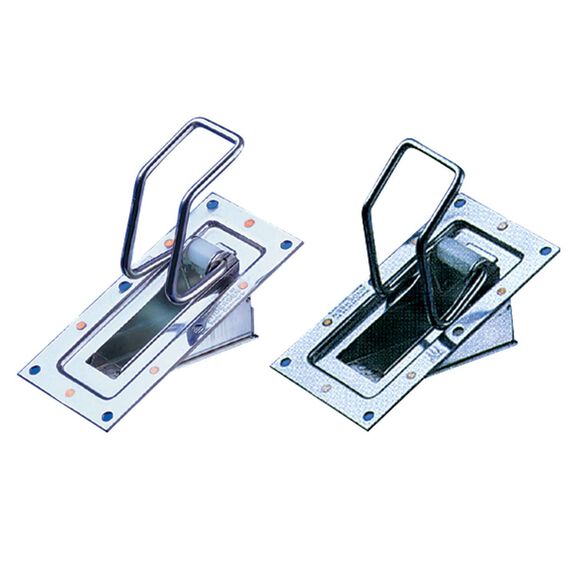

The iconic Andersen "Elvstrom Bailers" are the global standard for racing dinghy and keelboat use.
Designed by sailing legend Paul Elvstrom, Andersen Bailers are used in Stars, 420 and 470, Thistles, Snipes, Lightnings and many other traditional one-design classes. Their ingenious design uses venturi effect to produce suction and maximize water transfer.
Simply open the bailer when the boat is sailing at adequate speed to drain. An anti-drainback flapper valve minimizes water intrusion when the boat slows down. Typically installed in pairs on port and starboard sides for optimum bailing on both tacks.
Key Features
- Recognized for decades as the industry standard for automatic bailers
- In use on dinghies and keelboats worldwide
- Ingenious design uses venturi effect to produce suction and maximize water transfer – simply open the bailer when the boat is sailing at adequate speed to drain. Close when stationary or at low speed.
- Available in outside mount and inside mount models.
- Inside mount models have a plastic grate to prevent lines being sucked out.
- Robust stainless steel construction provides long trouble free service life.
- Bailer and service kit installation instructions are available
- Effective means of automatic bailing for dinghies and small one-design keelboats
- Install on port and starboard sides for optimum bailing on both tacks
- Stainless steel construction
- Rubber gaskets
| Bailer Model | Mounting Style | Opening Size | Flange Size | Cutout Size | Nominal Hull Thickness | Weight |
|---|---|---|---|---|---|---|
| Mini | Outside | 0.395in⊃2; (255mm⊃2;) | 1/4" x 3 5/8" (56 x 92mm) | 1 1/2" x 2 11/16" (38 x 73mm) | 5/32" (4mm) | 3.5oz. (100g) |
| Super Mini | Inside | 0.387 in⊃2; (250mm⊃2;) | 2 7/16" x 4 3/16" (61 x 106mm) | 1 5/8" x 3 3/8" (40 x 85mm) | 1/4" (7mm) | 6.2oz. (175g) |
| Super Medium | Inside | 0.543in⊃2; (350mm⊃2;) | 2 11/16" x 5 5/16" (67 x 135mm) | 1 3/4" x 4 3/8" (43 x 110mm) | 1/4" (7mm) | 9.6oz. (275g) |
| Super Large | Outside | 0.674in⊃2; (435mm⊃2;) | 3 3/16" x 5 9/16" (80 x 142mm) | 1 5/8" x 4 1/8" (41 x 104mm) | 5/32" (4mm) | 9.6oz. (275g) |
| Super Max | Inside | 0.837in⊃2; (540mm⊃2;) | 3 1/8" x 5 5/16" (78 x 135mm) | 2 1/8" x 4 3/8" (54 x 110mm) | 1/4" (7mm) | 11.2oz. (320g) |
Dimensions
Cutout: 1 3/4" Width x 4 3/8" Length
Material
Stainless Steel
Size
Super Medium
Type
Bailer
Weight
9 3/5 Ounces
