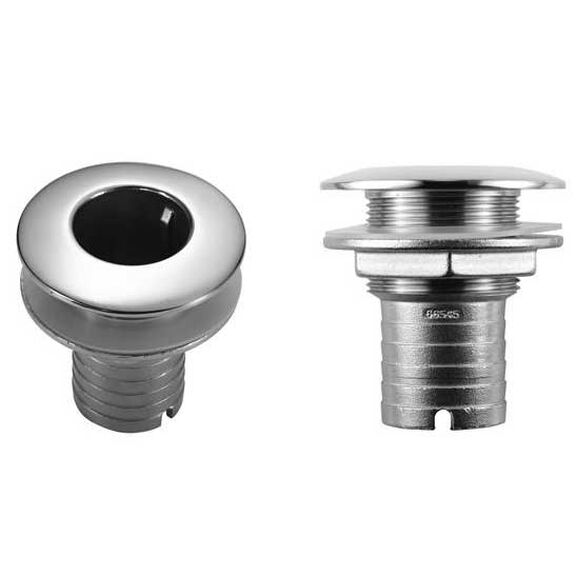

Stainless Steel Straight Thru-hull Barbed, Short Length, 1 1/2"

Polish your image with these beautiful, durable stainless steel fittings. Each Thru-Hull and Scupper Valve is available with a new silicone gasket and are backed by Attwood's trusted Lifetime Warranty! Why specify plastic parts when these fittings will last the life of the boat?

Rugged Stainless Construction

• Cast from certified enhanced #316 Stainless Steel allow for strength and lifetime corrosion-resistance
• We polish all visible areas to a mirror finish, then each part through a passivation for additional protection
• Thick steel sidewalls withstand continual stress and hose flexing

Solid Silicone Gasket

• Gasket is dimensionally stable--will not deteriorate or shrink over time
• Excellent resistance to UV & weather-aging
• Watertight, fool-proof, one-piece seal
• Eliminates the need to form and apply sealant or caulk
• No moreChemicals, solvent-soaked rags,or cleanup
• More than pays for itself in saved labor and cleanup time
• Guaranteed good looks because the perfect fit and concealment is built in the gasket

Faster, Simpler Installation

• A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
• All models have wrench flats or an end notch to hold as a gripping surface. One installer can tighten all connections from inside the hull
• Barbed tail ends provide plenty of room to hold multiple clamps

Caution: Thru-Hull connectors are designed for installation above the water line only.

Lifetime Warranty

• Hose size 1/2" I.D.
• Flange Dia.3"
• Thread OD1-7/8"
• Thread Length 1-1/4"
• Barb Length 1-1/2"
• Total Length 3-1/8"
• Install Hole size 2"
• Thread NP SM 1-1/2"
• Max Hull Thickness 5/8"
• Bulk without Gasket 66545-1
• Bulk with Gasket 66545G1
