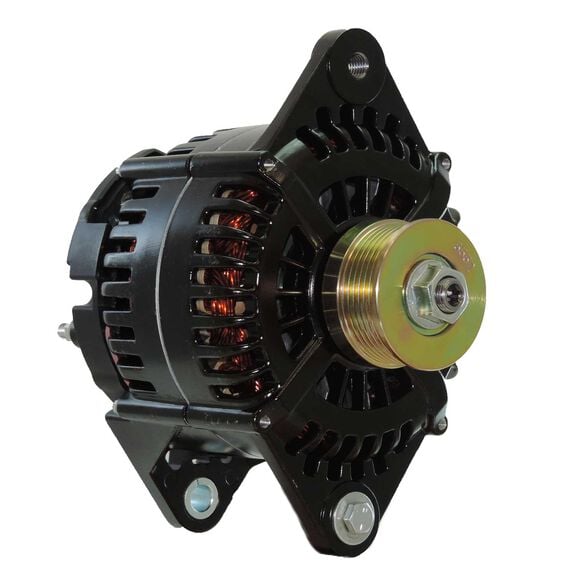

BALMAR 97XD-Series Heavy Duty Cycle Large Case Alternator
Extra-Large Case 97XD-Series Alternators are appropriate for large diesel applications such as Caterpillar, Cummins, MTU and John Deere engines to service extensive house battery loads. The New 97XD-Series utilizes braided-stator technology to deliver exceptional power at low RPM.
Features:
- Designed for Extended Duty Operation
- Excellent Power at Idle Speed
- Isolated Ground Terminations (except 97XD-24-190)
- Maximum RPM: 8,000
- External Regulation Required
- Designed for Large Diesel Applications
- USCG Title 33 Compliant
ISO Approved
J1171 Approved
Mount Type
Dual Foot 4.0"
Outputs
One Output
Pulley Groove Type
K6 Multigroove
Pulley Outside Diameter
2.45 Inches
Rated Output Power - 2000 RPM Hot
150 Amps
Rated Output Power - 6000 RPM Hot
240 Amps
Type
Alternator
Voltage
12 Volts DC
Warranty
Two Years
