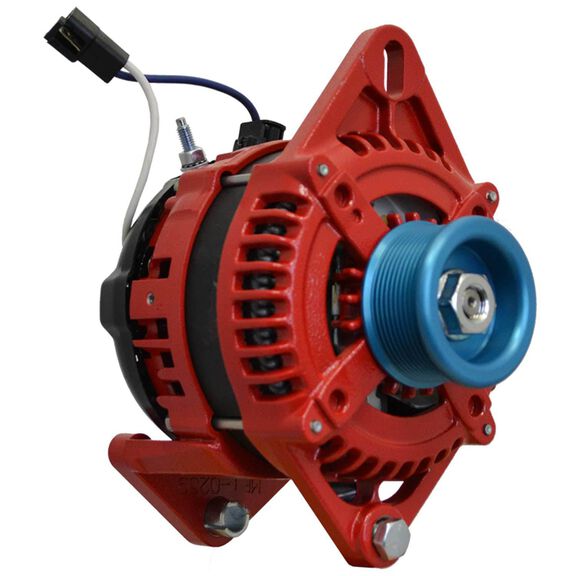

XT-Series, 170 Amp, 12 Volt, Dual Foot, J10 Pulley Alternator
Model #
19297126
Mfg #
XT-DF-170-J10
$984.00
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
XT-Series, 170 Amp, 12 Volt, Dual Foot, J10 Pulley Alternator
Model #
19297126
Mfg #
XT-DF-170-J10
$984.00
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
SEAFIT
$1.99
-
$2.99
Price reduced from
$11.49
to
-
Price reduced from
$16.49
to
The BALMAR XT-Series Alternators provide exceptional power at low RPM and ruggedized construction for marine use.
The Dual Foot 3.15" mount is appropriate for Yanmar engines. The XT-Series replaces the AT-Series with better power and temperature performace at a lower price point.
J10 Multigroove pulley is appropriate for use with an AltMount® Pulley Conversion Kit.
- XT-Series delivers over 100A at idle speeds
- Works best with Balmar Max Charge Regulator
- Patented Smart Ready® Internal Regulator provides "come-home" capability
- Powder Coat Finish for salt water environment protection
- Upgraded bearings, brushes and diodes for longer life
- Pulley-specific part numbers for easy installation
Dimensions
5.4" x 7.5" x 7.1"
ISO Approved
J1171
,
ISO28846
,
USCG Title 33
Mount Type
Dual Foot 3.15"
Outputs
1 Output
Pulley Groove Type
J10 Multigroove
Pulley Outside Diameter
2.4 Inches
Rated Output Power - 2000 RPM Hot
118 Amps
Rated Output Power - 6000 RPM Hot
170 Amps
Type
Alternator
Voltage
12 Volts DC
Warranty
Two Years
