BALMAR

XT-Series, 170 Amp, 12 Volt, Single Foot, Dual Vee Pulley Alternator

Model # 19297167 Mfg # XT-SF-170-DV
3.7 out of 5 Customer Rating
Advice & How-To
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Not sure what to buy? Let us help! Not sure what to buy? Let us help!

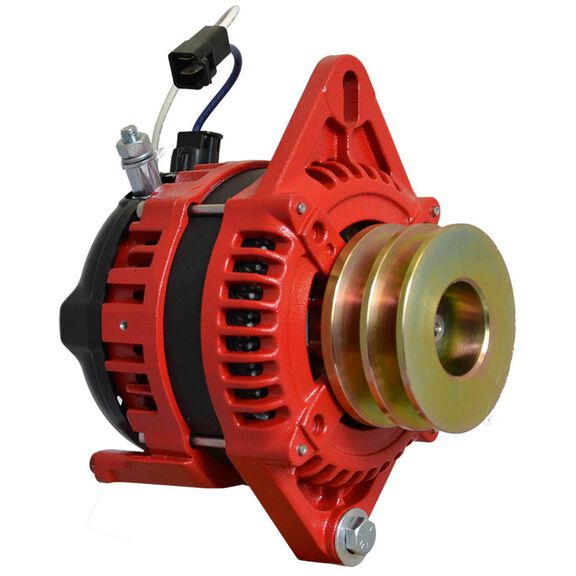

XT-Series, 170 Amp, 12 Volt, Single Foot, Dual Vee Pulley Alternator image number 0
BALMAR
XT-Series, 170 Amp, 12 Volt, Single Foot, Dual Vee Pulley Alternator
Model # 19297167 Mfg # XT-SF-170-DV
3.7 out of 5 Customer Rating
Advice & How-To
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Not sure what to buy? Let us help! Not sure what to buy? Let us help!
Out Of Stock Item out of stock get notified when back in stock:
Thank you! We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+

Complete Your Purchase

The BALMAR XT-Series Alternators provide exceptional power at low RPM and ruggedized construction for marine use. The Single Foot 1-2" mount is appropriate for most Volvo engines.

The XT-Series replaces the AT-Series with better power and temperature performace at a lower price point.

  • XT-Series delivers over 100A at idle speeds
  • Works best with Balmar Max Charge Regulator
  • Patented Smart Ready® Internal Regulator provides "come-home" capability
  • Powder Coat Finish for salt water environment protection
  • Upgraded bearings, brushes and diodes for longer life
  • Pulley-specific part numbers for easy installation
Warning
www.P65Warnings.ca.gov
View More View Less

Dimensions 5.4" x 7.5" x 7.3"
ISO Approved J1171 , ISO28846 , USCG Title 33
Mount Type Single Foot 1-2"
Outputs 1 Output
Pulley Groove Type Dual Vee
Pulley Outside Diameter 2.7 Inches
Rated Output Power - 2000 RPM Hot 118 Amps
Rated Output Power - 6000 RPM Hot 170 Amps
Type Alternator
Voltage 12 Volts DC
Warranty Two Years
