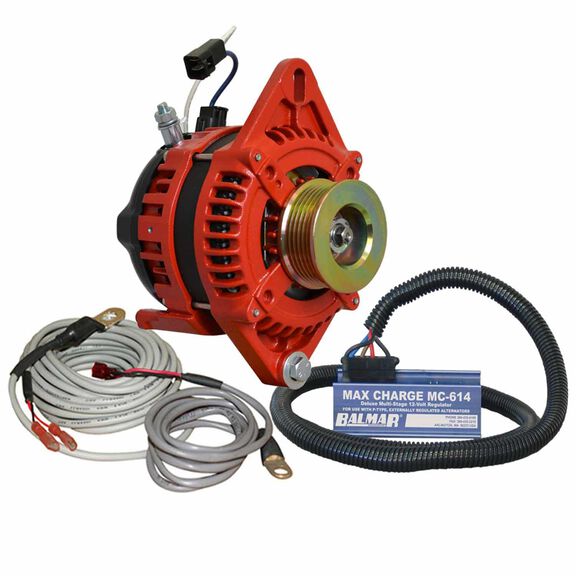

The BALMAR XT-Series Alternator Charge Kit includes Balmar XT-Series Alternator, Max Charge 614 Regulator and Temperature Sensors for alternator and battery.
Approprate for charging large battery banks of any chemistry, including lithium. Eight pre-programmed charge curves by chemistry optimally charge batteries in less time and extend battery life.
K6 Multigroove pulley.
- XT-Series delivers over 100A at idle speeds
- Patented Smart Ready® Internal Regulator provides "come-home" capability
- Powder Coat Finish for salt water environment protection
- Upgraded bearings, brushes and diodes for longer life
- Pulley-specific part numbers for easy installation
Dimensions
5.4" x 7.5" x 6.9"
ISO Approved
J1171
,
ISO28846
,
USCG Title 33
Mount Type
Single Foot 1-2"
Outputs
1 Output
Pulley Groove Type
K6 Multigroove
Pulley Outside Diameter
2.45 Inches
Rated Output Power - 2000 RPM Hot
118 Amps
Rated Output Power - 6000 RPM Hot
170 Amps
Type
Alternator/Regulator
Voltage
12 Volts DC
Warranty
Two Years
