15A Blue/Red Backlit Push Button Switch, Off/On
Model #
18697847
Mfg #
4180
$49.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Contemporary, waterproof and compact 15-amp LED-backlit Push-Button Switches are made to accent your instrument panel.

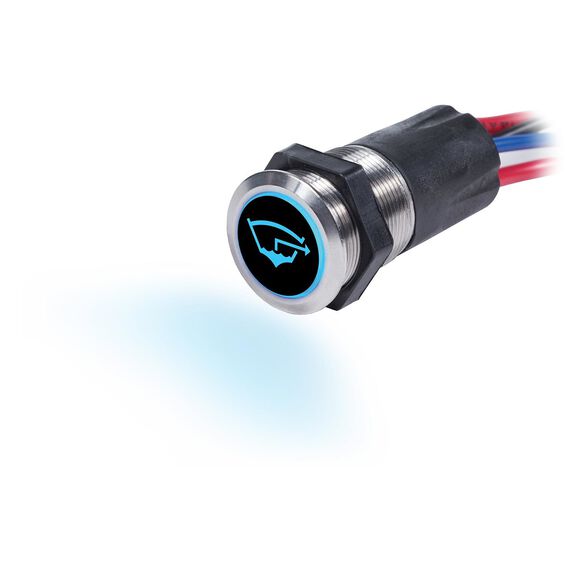

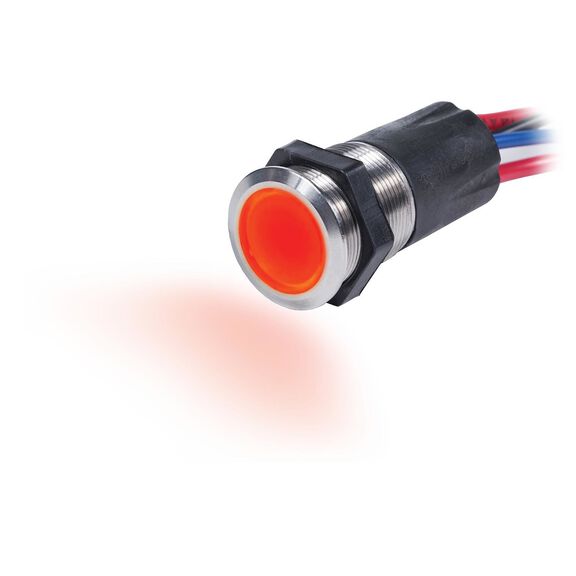

A stylish LED indicator lights up blue to show when this switch is off and red when it is on. This waterproof switch is built for resistance to the damp world on your boat, with a case made from Type 316 stainless steel. Rated IP67 waterproof and submersible, it includes an O-ring panel gasket seal and a molded rear cover.
Key Features
- Fits a 7/8" diameter cutout and mounts to panels up to 1/4" (6mm) in thickness
- Rated for up to 15 amps of operating current, for DC voltage of 15V and below (12-volt systems)
- LED indicator light draws a thrifty 20mA when illuminated
- Silver alloy contact material, 316 stainless steel body, gasket sealed panel, molded rear cover
- Rated IP67, protected against immersion up to 1 meter for 30 minutes
- Includes a package of five icon labels (Accessory, Lights, Anchor Light, Running Light and Bilge Pump)
- Set of 50 additional icon labels available (sold separately) for many other applications
- Available in Off/On and Off/Momentary On versions
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Dimensions
7/8" Cutout
,
Up to 1/4" Thick Panel
Type
2 Position
,
Push Button
,
Spring Return
Voltage
12 Volts DC
Warranty
Lifetime
