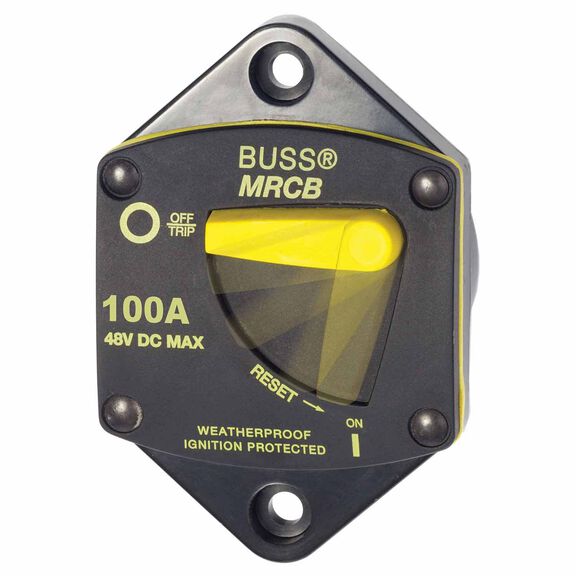

187 Series Thermal 100A Circuit Breaker Panel Mount
Model #
8646358
Mfg #
7044
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
187 Series Thermal 100A Circuit Breaker Panel Mount
Model #
8646358
Mfg #
7044
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
Switching and circuit protection in a single device. Single lever operation. Waterproof, with recessed mounting holes for a clean appearance. Self-trimming case eliminates the need for mounting panels or trim bezels and permits easy installation with a standard sized hole saw. Large clearance around 5/16" terminal studs accept heavy gauge wire lugs and allows high-torque connections. Ignition-protected safe for installation aboard gasoline-powered boats. Interrupt rating: 5000A at 12V DC.
- Switch Type: Toggle
- Voltage Compatibility: 48V DC
- Safety Features: "Trip Free" design. Ignition-protected
- Housing Material: Thermoset polyester
- Housing Dimensions: Surface Mount: 3.44"H x 2.32"W x 1.8"D; Panel Mount: 3.38"H x 2.26"W x 1.75"D. 2.10" cutout dia.
- Terminal Type: 5/16" terminal studs
- Mounting Hardware: #10 screws
- Approvals: Meets SAE J1171 external ignition protection requirements
- Warranty: Five years
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Amperage
100 Amps
ISO Approved
Meets SAE J1171 External Ignition Protection Requirements
Mounting Hardware
Circuit Breaker Panel (Sold Separately)
Type
Circuit Breakers
Warranty
Five Years
