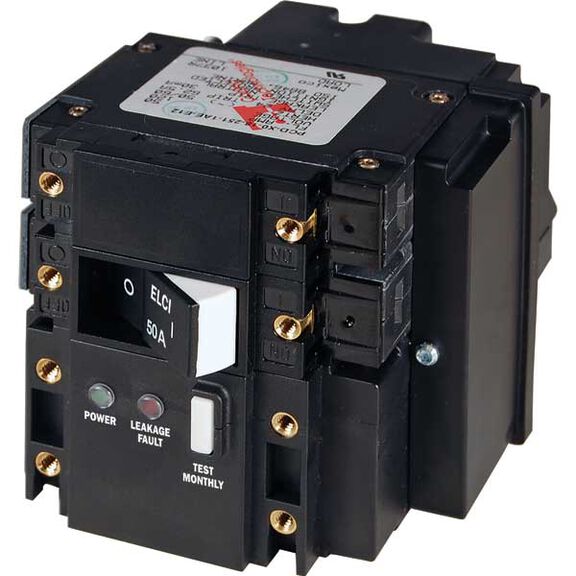

C-Series ELCI Main Circuit Breaker, Double Pole, 120V AC, 50A
Get 5X West Advantage Points on all purchases for a limited time! Not a rewards member? JOIN NOW
Protect passengers and swimmers by adding an ELCI breaker to your 360 panel
Equipment Leakage Circuit Interrupter (ELCI) breakers protect not only everyone on your boat, but also those in the surrounding water from accidental electric shock caused by ground fault or faulty ground. Blue Sea Systems offers the C-Series 50A ELCI main breaker (240V AC double pole) that will trip when either situation is detected. This breaker will fit into 360 panels or SMS enclosures that compatible with flat rocker style breakers. Installation of an ELCI breaker, when installed following their guidelines, meets ABYC E-
Key Features
- Protects passengers and swimmers from accidental electric shock due to ground fault or faulty ground.
- Compatible with 360 panels and SMS enclosures
- Breaker has Trip-free feature and cannot be held in ON position when fault is detected
- Meets ABYC E-11 regulation
- Lifetime warranty
Specifications
- Amperage: 50A
- Actuator Style: Flat Rocker
- Maximum Voltage: 120V AC per pole, 240V per pole
- Circuit Breaker Type: Magnetic Hydraulic- trip free
- Interrupt Capacity: 5000A
