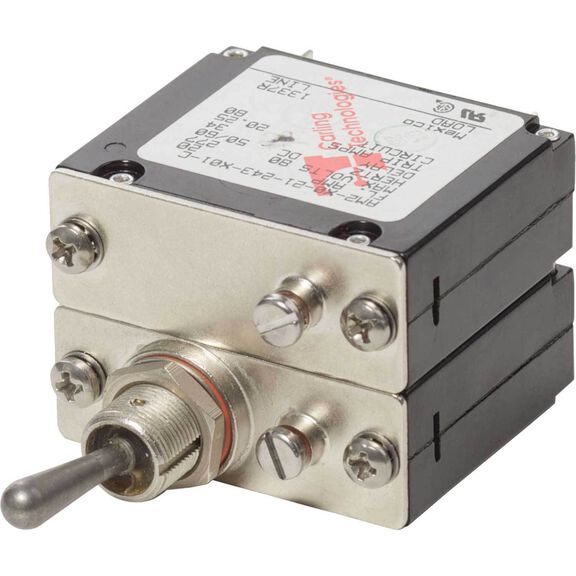

Magnetic hydraulic circuit breakers that combine switching and circuit protection into a single device.
- The industry standard circuit breaker for Blue Sea Systems electrical panels
- Double pole typically used for AC Main circuit protection
- "Trip Free" design cannot ben held "ON" during fault current condition
- Meets American Boat and Yacht Council (ABYC) standards
- UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada
- May be suitable for use when military specifications are required under CFR 46.
Specifications
- Maximum Voltage: 277V AC, 65V DC
- Circuit Breaker Type: Magnetic Hydraulic—Trip free
- Interrupt Capacity, The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage: 1500A AC, 7500A DC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Boss: 1/2-32 Hex Nut SS
- Mounting Nut Torque: 30in-lb (3.39 Nm)
- Mounting Screw: #6-32 SS
- Mounting Screw Torque: 7 in-lb (0.79 Nm)
- Screw Terminal Torque: 14 in-lb (1.58 Nm)
- Switching Cycles: 6000 Electrical, 4000 Mechanical
- Terminal Screw: #10-32 SS
- Weight: 0.23lb (0.1 kg)
